2SB1123 - Bipolar Transistor

Product Overview

ON Semiconductor

📥 Download Datasheet

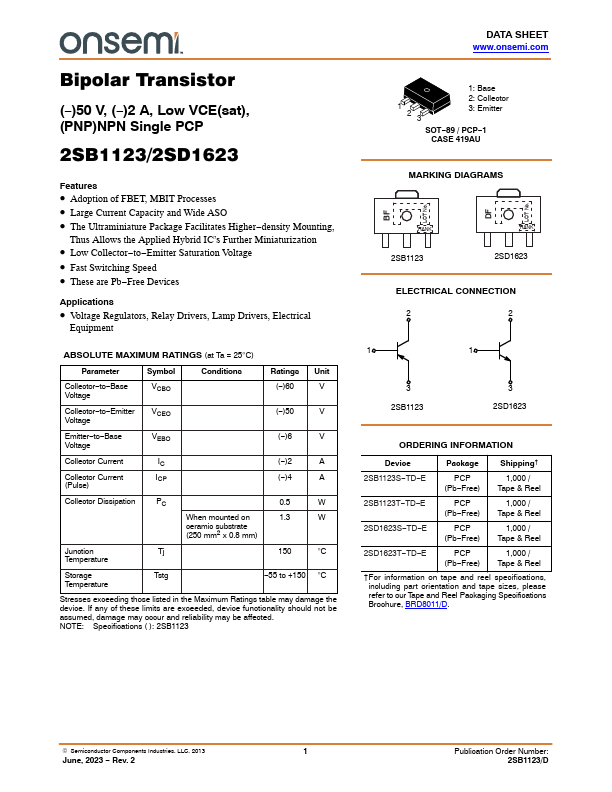

2SB1123 Bipolar Transistor by ON Semiconductor - Datasheet Preview — Datasheet preview – 2SB1123

Datasheet Details

Part number	2SB1123
Manufacturer	ON Semiconductor
File Size	236.81 KB
Description	Bipolar Transistor
Datasheet	2SB1123 Datasheet

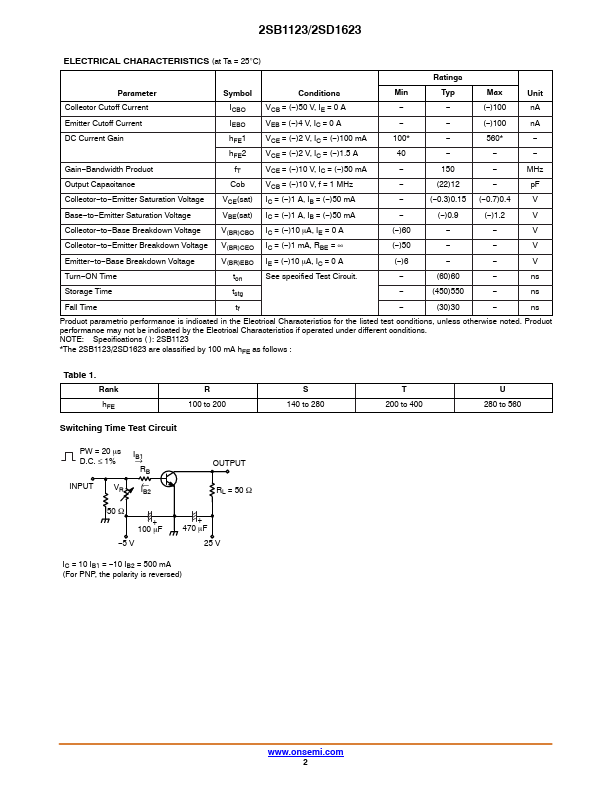

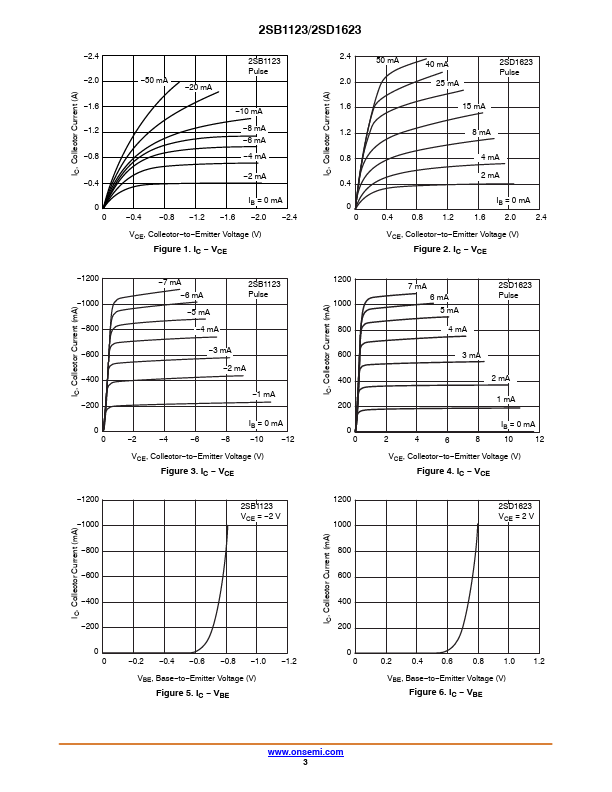

Additional preview pages of the 2SB1123 datasheet.

Product details

Features

Adoption of FBET, MBIT processes.
Low collector-to-emitter saturation voltage.
Large current capacity and wide ASO.
Fast switching speed.
The ultraminiature package facilitates higher-density mounting, thus allows the applied hybrid IC’s further miniaturization Speciﬁcations ( ) : 2SB1123 Absolute Maximum Ratings at Ta=25°C Parameter Symbol Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Coll.
