Datasheet Details
| Part number | 2SB1201 |
|---|---|
| Manufacturer | onsemi |
| File Size | 313.95 KB |
| Description | Bipolar Transistor |
| Datasheet |

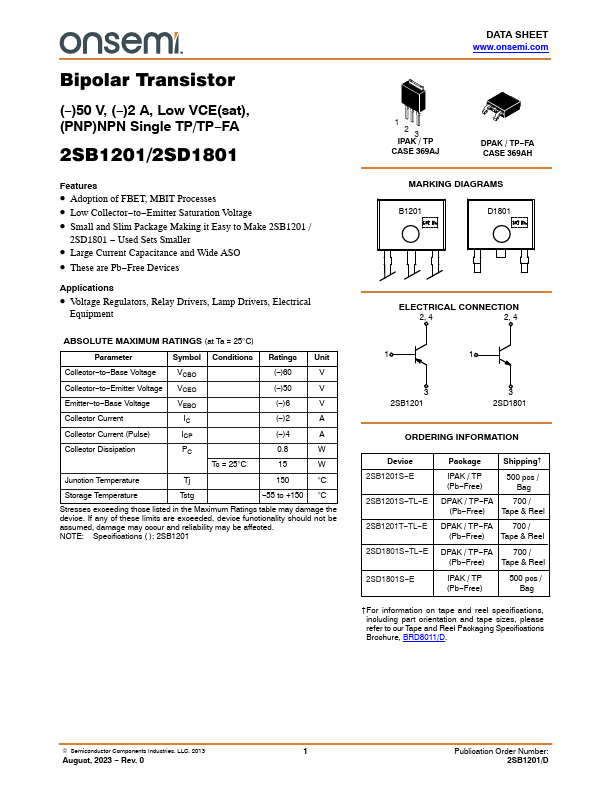

 2SB1201 Datasheet
|
|
|
Key Features
- Adoption of FBET, MBIT processes.
- Large current capacitance and wide ASO.
- Low collector-to-emitter saturation voltage.
- Fast switching speed.
- Small and slim package making it easy to make 2SB1201/2SD1801-used sets smaller Specifications ( ): 2SB1201 Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Symbol VCBO VCEO VEBO IC ICP.
