2SC4135 - Bipolar Transistor

Product Overview

ON Semiconductor

Part number	2SC4135
Manufacturer	ON Semiconductor
File Size	304.19 KB
Description	Bipolar Transistor
Datasheet	2SC4135 Datasheet

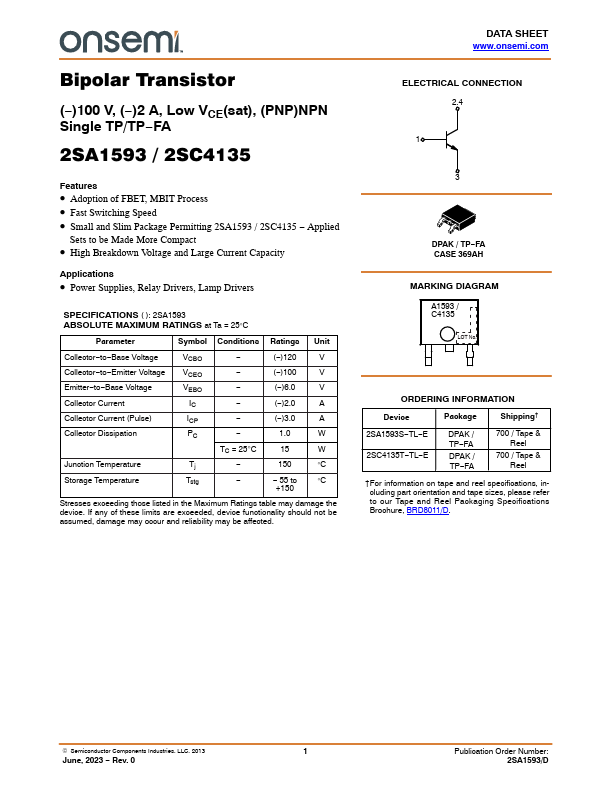

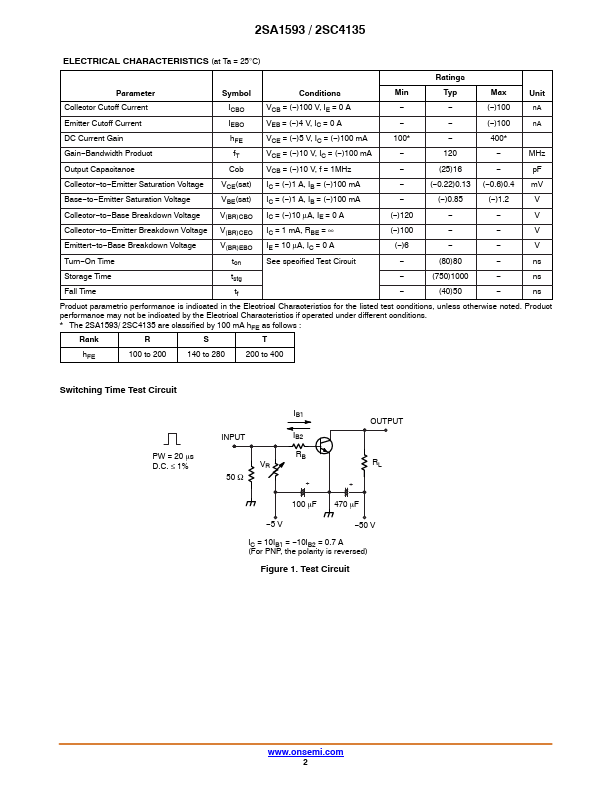

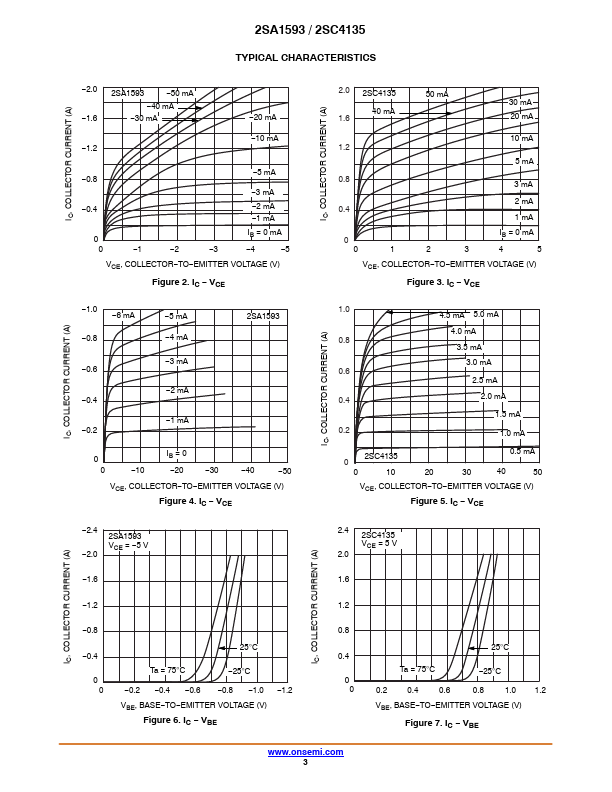

Additional preview pages of the 2SC4135 datasheet.

Adoption of FBET, MBIT processes.
High breakdown voltage and large current capacity.
Fast switching speed.
Small and slim package permitting 2SA1593/2SC4135-applied sets to be made more compact Speciﬁcations ( ): 2SA1593 Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Symbol VCBO VCEO VEBO IC ICP Package Dimensions unit : mm (typ).
