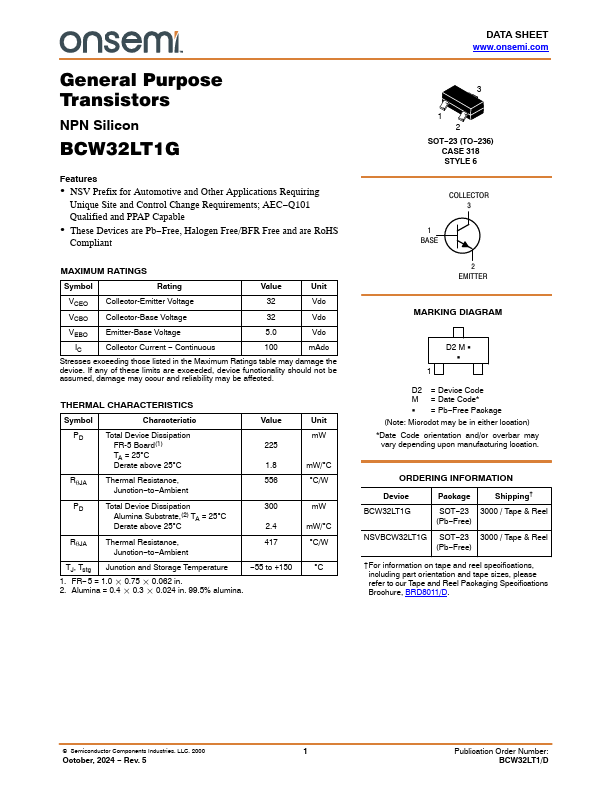

BCW32LT1G
BCW32LT1G is NPN Silicon General Purpose Transistor manufactured by onsemi.
General Purpose Transistors
NPN Silicon
Features
- NSV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC- Q101
Qualified and PPAP Capable
- These Devices are Pb- Free, Halogen Free/BFR Free and are RoHS pliant
MAXIMUM RATINGS
Symbol
Rating
Value
Unit
VCEO Collector-Emitter Voltage
Vdc
VCBO Collector-Base Voltage
Vdc
VEBO Emitter-Base Voltage
Vdc
Collector Current
- Continuous
100 mAdc
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be...
