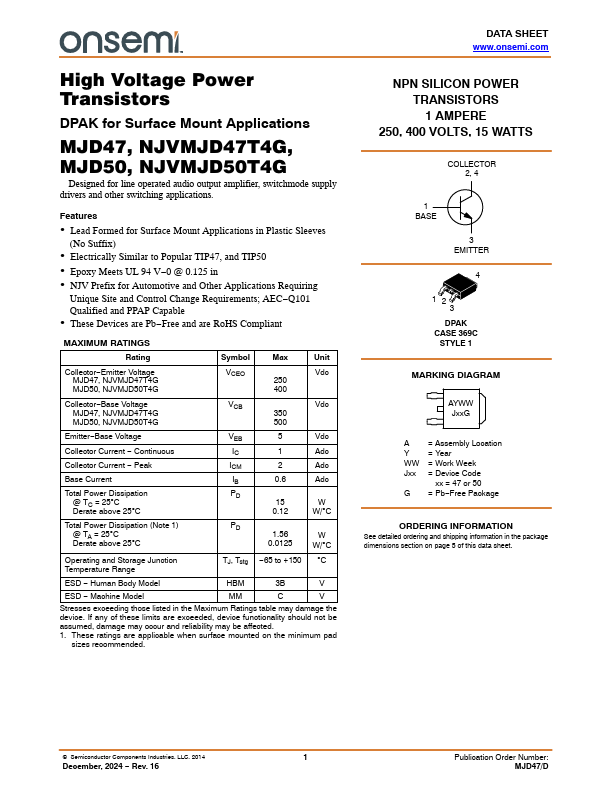

MJD47
MJD47 is High Voltage Power Transistors manufactured by onsemi.
High Voltage Power Transistors
DPAK for Surface Mount Applications
MJD47, NJVMJD47T4G, MJD50, NJVMJD50T4G
Designed for line operated audio output amplifier, switchmode supply drivers and other switching applications.
Features
- Lead Formed for Surface Mount Applications in Plastic Sleeves
(No Suffix)
- Electrically Similar to Popular TIP47, and TIP50
- Epoxy Meets UL 94 V- 0 @ 0.125 in
- NJV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC- Q101
Qualified and PPAP Capable
- These Devices are Pb- Free and are RoHS pliant
MAXIMUM RATINGS
Rating
Symbol
Max
Unit
Collector- Emitter Voltage MJD47, NJVMJD47T4G MJD50, NJVMJD50T4G
VCEO...
