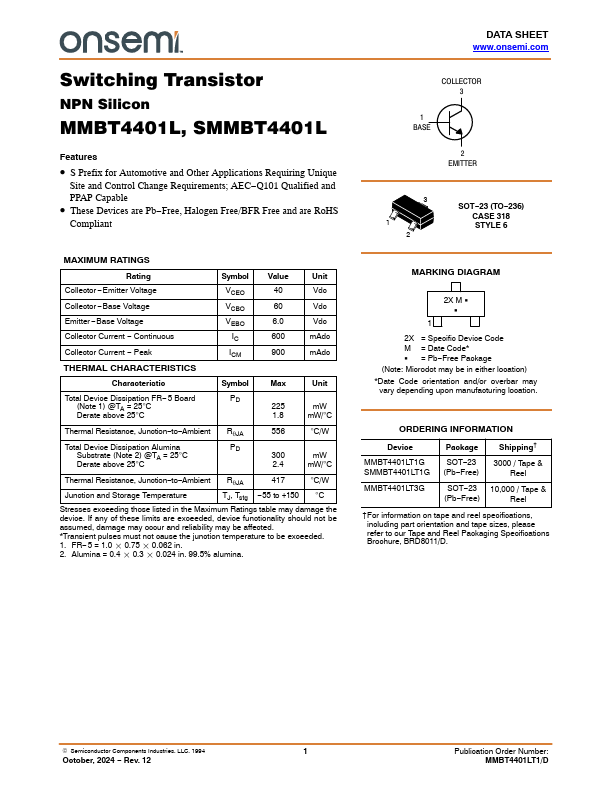

MMBT4401L, SMMBT4401L
Switching Transistor
NPN Silicon
Features
• S Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
MAXIMUM RATINGS
Rating Collector −Emitter Voltage Collector −Base Voltage Emitter −Base Voltage Collector Current − Continuous Collector Current − Peak THERMAL CHARACTERISTICS
Symbol VCEO VCBO VEBO
IC ICM
Value 40 60 6.0 600 900
Unit Vdc Vdc Vdc mAdc mAdc
Characteristic
Total Device Dissipation FR− 5 Board (Note 1) @TA = 25°C Derate above 25°C
Symbol PD
Max
225 1.
