MMBTA42L - High Voltage Transistors

onsemi

Download the MMBTA42L datasheet PDF. This datasheet also covers the MMBTA43L variant, as both devices belong to the same high voltage transistors family and are provided as variant models within a single manufacturer datasheet.

Key Features

S Prefix for Automotive and Other.

📥 Download Datasheet

MMBTA42L high voltage transistors by onsemi - Datasheet Preview — Note: The manufacturer provides a single datasheet file (MMBTA43L_ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	MMBTA42L
Manufacturer	onsemi
File Size	121.63 KB
Description	High Voltage Transistors
Datasheet	MMBTA42L Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
MMBTA42LT1	High Voltage Transistors	Motorola
MMBTA42	Surface mount High Voltage Transistors	Diotec
MMBTA42	NPN High Voltage Amplifier	GME
MMBTA42	Silicon NPN transistor	BLUE ROCKET ELECTRONICS
MMBTA42	NPN Transistor	HOTTECH

Other Datasheets by onsemi

Part Number	Description
MMBTA42LT1G	High Voltage Transistors
MMBTA43L	High Voltage Transistors
MMBTA43LT1G	High Voltage Transistors
MMBTA05L	Driver Transistors
MMBTA06L	Driver Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

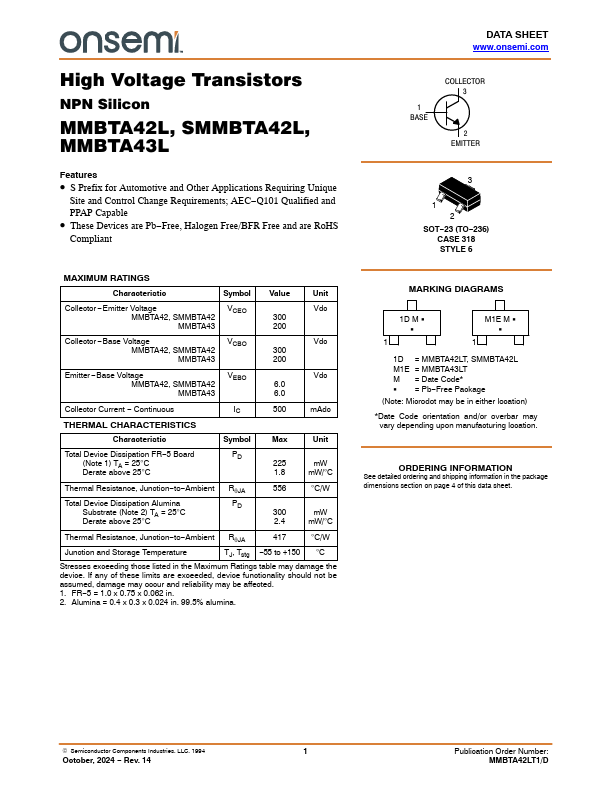

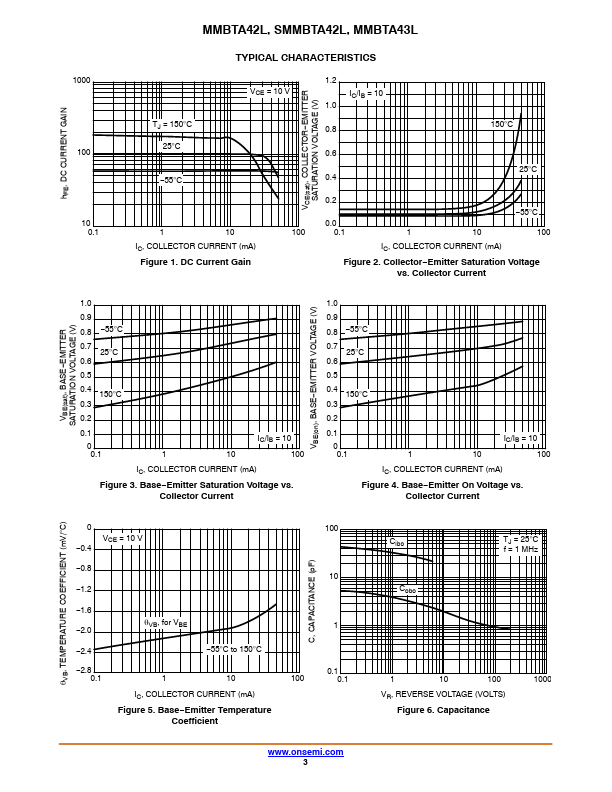

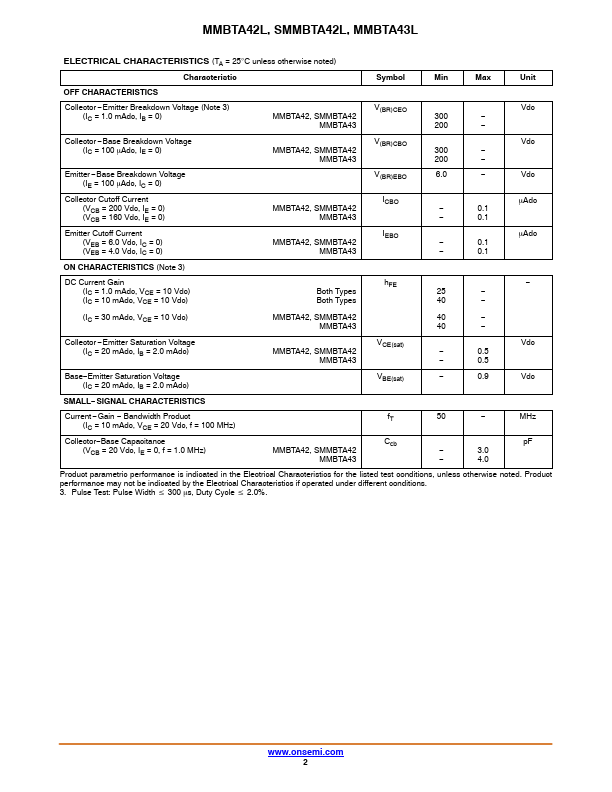

MMBTA42L, SMMBTA42L, MMBTA43L High Voltage Transistors NPN Silicon Features • S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS Characteristic Symbol Value Unit Collector −Emitter Voltage VCEO Vdc MMBTA42, SMMBTA42 300 MMBTA43 200 Collector −Base Voltage MMBTA42, SMMBTA42 VCBO 300 Vdc MMBTA43 200 Emitter −Base Voltage VEBO Vdc MMBTA42, SMMBTA42 6.0 MMBTA43 6.0 Collector Current − Continuous THERMAL CHARACTERISTICS IC 500 mAdc Characteristic Symbol Max Unit Total Device Dissipation FR−5 Board (Note 1) TA = 25°C Derate above 25°C PD 225 mW 1.
