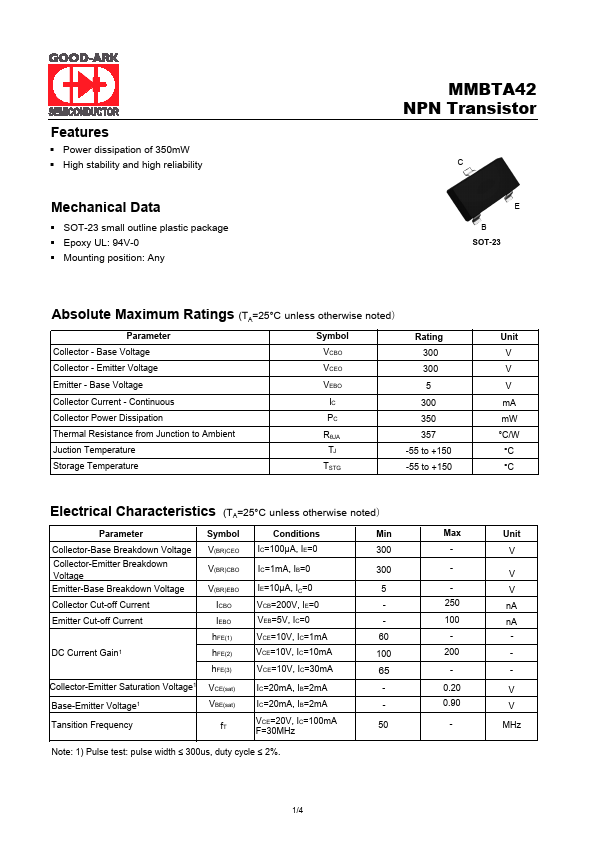

MMBTA42 Datasheet NPN Transistor

Manufacturer: GOODARK

Datasheet Details

Power dissipation of 350mW.
High stability and high reliability Mechanical Data.
SOT-23 small outline plastic package.
Epoxy UL: 94V-0.
Mounting position: Any MMBTA42 NPN Transistor C E B SOT-23 Absolute Maximum Ratings (TA=25°C unless otherwise noted） Parameter Collector - Base Voltage Collector - Emitter Voltage Symbol VCBO VCEO Rating 300 300 Emitter - Base Voltage VEBO 5 Collector Current - Continuous Collector Power Dissipation Thermal Resistance from Junc.
