BAT42W

Manufacturer: PanJit Semiconductor

BAT42W datasheet by PanJit Semiconductor.

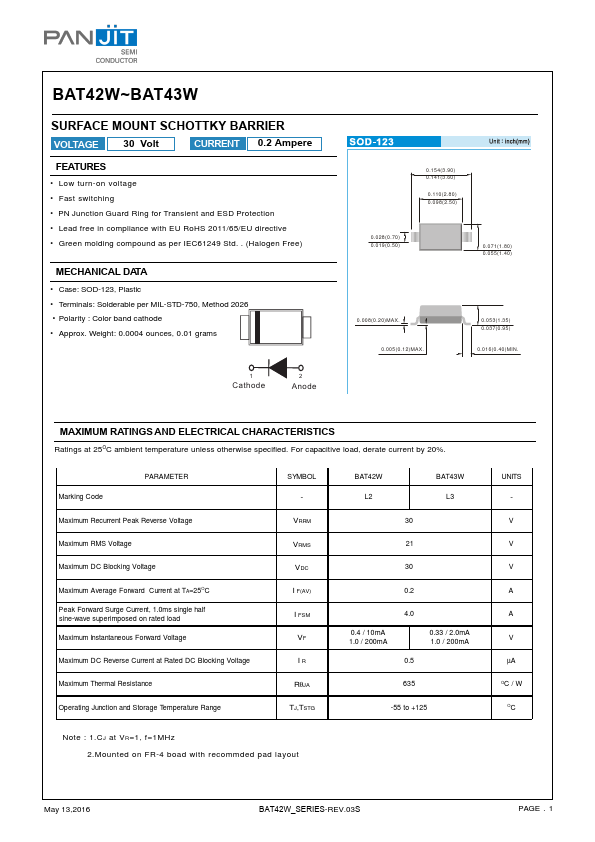

BAT42W datasheet preview

BAT42W Datasheet Details

Part number	BAT42W
Datasheet	BAT42W-PANJIT.pdf
File Size	449.08 KB
Manufacturer	PanJit Semiconductor
Description	30V 0.2A SURFACE MOUNT SCHOTTKY BARRIER

BAT42W Overview

BAT42W~BAT43W SURFACE MOUNT SCHOTTKY BARRIER VOLTAGE 30 Volt CURRENT 0.2 Ampere.

BAT42W Key Features

Low turn-on voltage
Fast switching
PN Junction Guard Ring for Transient and ESD Protection
Lead free in pliance with EU RoHS 2011/65/EU directive
Green molding pound as per IEC61249 Std. . (Halogen Free)
Case: SOD-123, Plastic
Terminals: Solderable per MIL-STD-750, Method 2026
Polarity : Color band cathode
Approx. Weight: 0.0004 ounces, 0.01 grams
55 to +125
