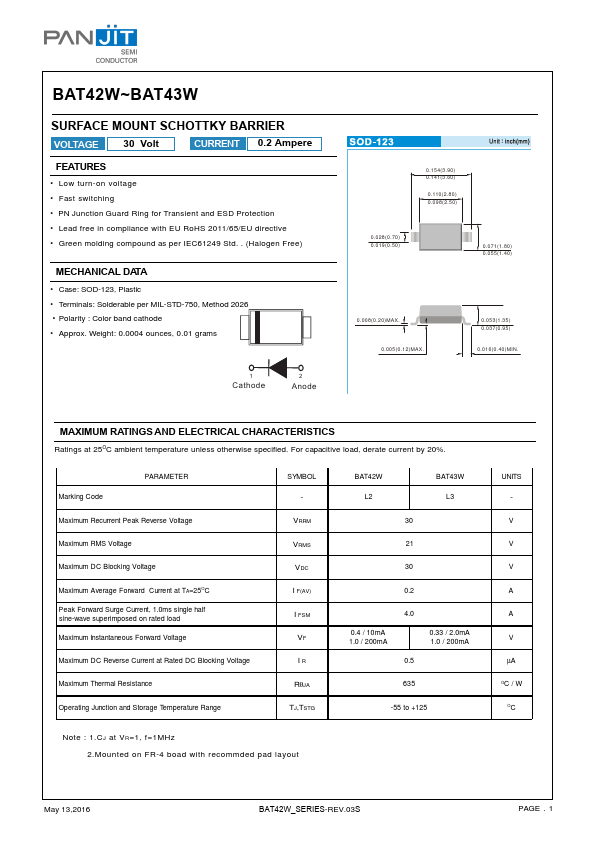

BAT42W~BAT43W SURFACE MOUNT SCHOTTKY BARRIER VOLTAGE 30 Volt CURRENT 0.2 Ampere Features - Low turn-on voltage - Fast switching - PN Junction Guard Ring for Transient and ESD Protection - Lead free in pliance with EU RoHS 2011/65/EU directive - Green molding pound as per IEC61249 Std. . (Halogen Free) MECHANICAL DATA - Case: SOD-123, Plastic - Terminals: Solderable per MIL-STD-750, Method 2026 - Polarity : Color band cathode - Approx. Weight: 0.0004 ounces, 0.01 grams Cathode Anode 0.154(3.90) 0.141(3.60) 0.110(2.80) 0.098(2.50) 0.028(0.70) 0.019(0.50) 0.071(1.80) 0.055(1.40) 0.008(0.20)MAX. 0.005(0.12)MAX. 0.053(1.35) 0.037(0.95) 0.016(0.40)MIN. MAXIMUM RATINGS AND...
