BAT43W - 200mW Surface Mount Schottky Barrier Diode

This page provides the datasheet information for the BAT43W, a member of the BAT42W 200mW Surface Mount Schottky Barrier Diode family.

Datasheet Summary

Features

  • ◇ Low forward voltage drop ◇ Surface mount package ideally suited for automatic insertion ◇ Moisture sensitivity level 1 ◇ High temperature soldering guaranteed : 260oC/10 seconds ◇ Green compond (Halogen free) with suffix "G" on packing code and prefix "G" on date code Mechanical Data ◇ Case : SOD-123 plastic package ◇ Terminal : Matte tin plated, lead free, solderable per MIL-STD-202, method 208 guaranteed ◇ Polarity : Color band ◇ High temperature soldering guaranteed : 260oC/10 second ◇ Mark.

📥 Download Datasheet

Datasheet preview – BAT43W

Datasheet Details

Part number BAT43W
Manufacturer Taiwan Semiconductor
File Size 182.78 KB
Description 200mW Surface Mount Schottky Barrier Diode
Datasheet download datasheet BAT43W Datasheet

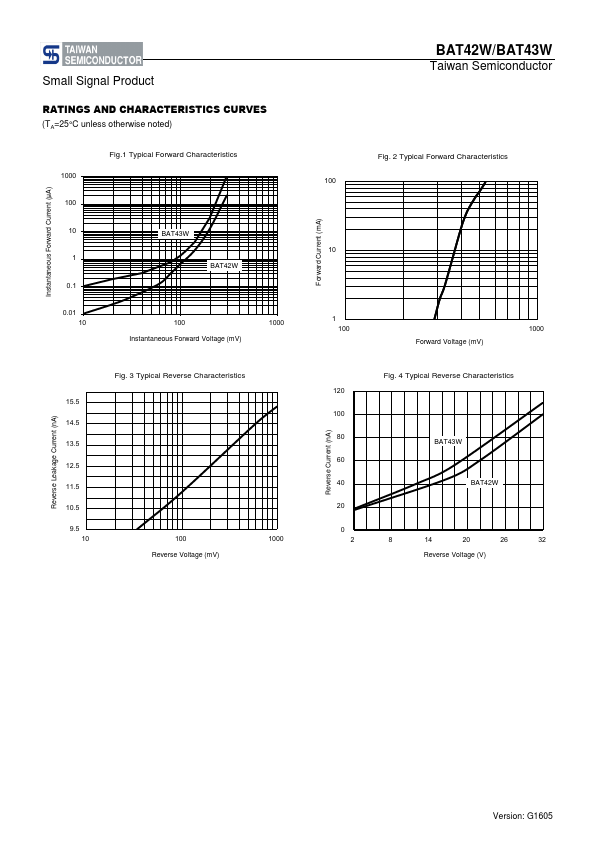

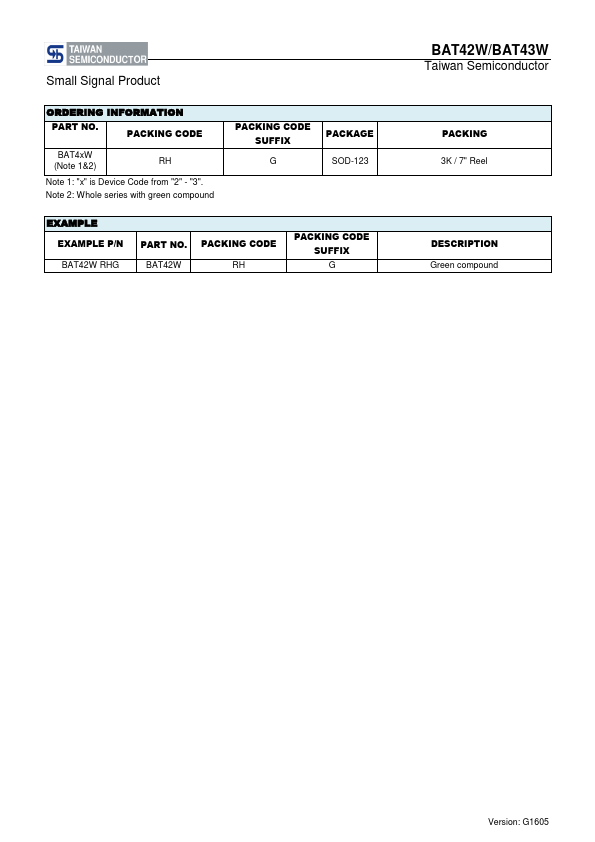

Additional preview pages of the BAT43W datasheet.

📁 Similar Datasheet

  • BAT43W - 200mA Surface Mount Small Signal Diodes (CITC)
  • BAT43W - Schottky Diodes (General Semiconductor)
  • BAT43W - Surface Mount Schottky Barrier Diodes (JGD)
  • BAT43W - SCHOTTKY DIODES (AiT Components)
  • BAT43W - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (KD)
  • BAT43W - Fast Switching Schottky Barrier Diode (MIC)
  • BAT43W - SURFACE MOUNT SCHOTTKY BARRIER DIODE (WON-TOP)
  • BAT43W - SURFACE MOUNT SCHOTTKY BARRIER DIODE (Diodes)
  • BAT43W - SCHOTTKY BARRIER DIODE (JCET)
  • BAT43W - Small Signal Schottky Diode (Vishay)
Other Datasheets by Taiwan Semiconductor
  • BAT43WS - 0.2W Surface Mount Flat Lead Fast Switching Schottky Barrier Diode
  • BAT43 - Hermetically Sealed Glass Fast Switching Schottky Barrier Diode
  • BAT43X - Schottky Diode
  • BAT42 - Hermetically Sealed Glass Fast Switching Schottky Barrier Diode
  • BAT42W - 200mW Surface Mount Schottky Barrier Diode
  • BAT42WS - 0.2W Surface Mount Flat Lead Fast Switching Schottky Barrier Diode
  • BAT46W - Surface Mount Schottky Barrier Diode
  • BAT54 - 230mW SMD Schottky Barrier Diode

Full PDF Text Transcription

Click to expand full text
Small Signal Product CREAT BY ART BAT42W - BAT43W 200mW Surface Mount Schottky Barrier Diode Switching Schottky Barrier Diodes Features ◇ Low forward voltage drop ◇ Surface mount package ideally suited for automatic insertion ◇ Moisture sensitivity level 1 ◇ High temperature soldering guaranteed : 260oC/10 seconds ◇ Green compond (Halogen free) with suffix "G" on packing code and prefix "G" on date code Mechanical Data ◇ Case : SOD-123 plastic package ◇ Terminal : Matte tin plated, lead free, solderable per MIL-STD-202, method 208 guaranteed ◇ Polarity : Color band ◇ High temperature soldering guaranteed : 260oC/10 second ◇ Marking : BAT42W - S7 BAT43W - S8 ◇ Weight : 0.
