BAW56W - SURFACE MOUNT SWITCHING DIODES

PanJit Semiconductor

Key Features

Fast switching speed.
Surface mount package Ideally Suited for Automatic insertion.
Electrically Identical to Standard JEDEC.
High Conductance.

BAW56W surface mount switching diodes by PanJit Semiconductor - Datasheet Preview

Datasheet Details

Part number	BAW56W
Manufacturer	PanJit Semiconductor
File Size	105.42 KB
Description	SURFACE MOUNT SWITCHING DIODES
Datasheet	BAW56W Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BAW56W	SWITCHING DIODE	Eris
BAW56W	Dual Switching Diodes	YS
BAW56W	SURFACE MOUNT FAST SWITCHING DIODE	LITE-ON
BAW56W	Surface mount switching diode	GME
BAW56W	200mW SURFACE MOUNT SWITCHING DIODES	TIPTEK

Other Datasheets by PanJit Semiconductor

Part Number	Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

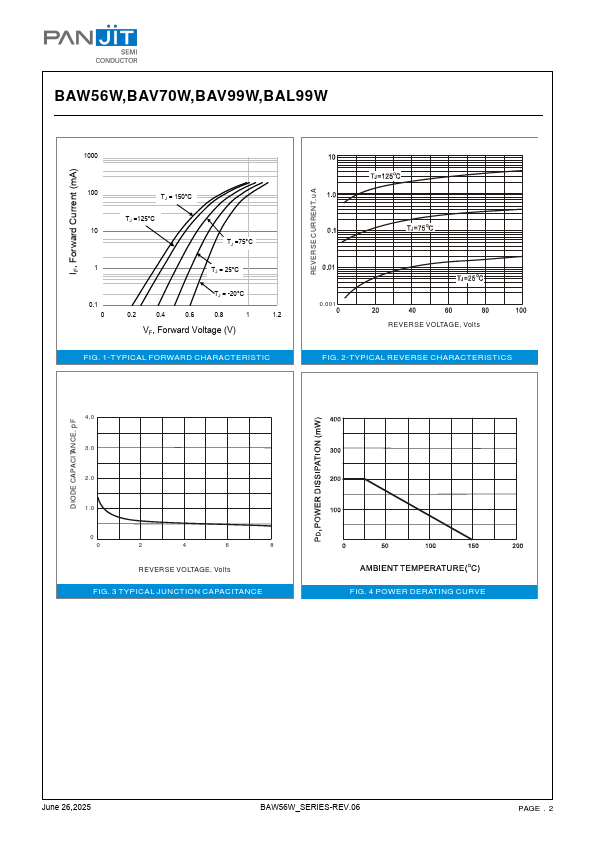

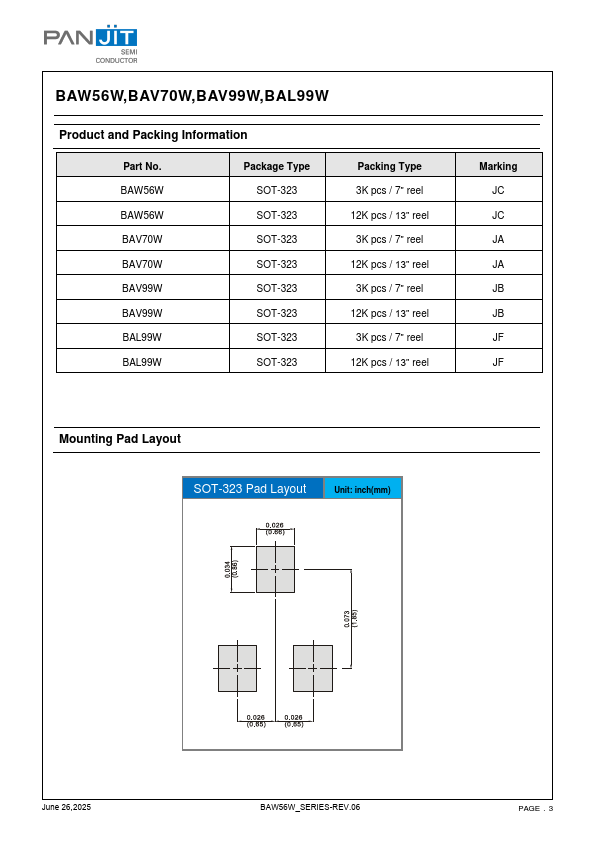

BAL99W, BAW56W, BAV70W, BAV99W SURFACE MOUNT SWITCHING DIODES VOLTAGE 75 Volts POWER 200mWatts PACKAGE FEATURES • Fast switching speed. • Surface mount package Ideally Suited for Automatic insertion • Electrically Identical to Standard JEDEC • High Conductance MECHANICAL DATA Case: SOT-323, Plastic Terminals: Solderable per MIL-STD-202, Method 208 Approx. Weight: 0.008 gram Marking : JF, JC, JA, JG SOT-323 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25OC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
