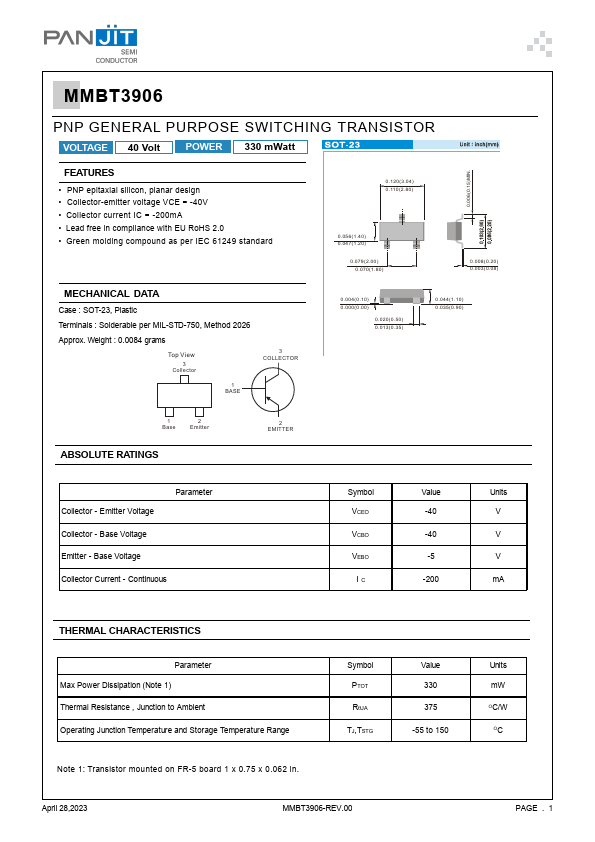

MMBT3906 Datasheet PNP General Purpose Switching Transistor

Manufacturer: PanJit Semiconductor

Overview: MMBT3906 PNP GENERAL PURPOSE SWITCHING TRANSISTOR VOLTAGE 40 Volt POWER 330.

Datasheet Details

Part number	MMBT3906
Manufacturer	PanJit Semiconductor
File Size	349.44 KB
Description	PNP GENERAL PURPOSE SWITCHING TRANSISTOR
Datasheet	MMBT3906-PANJIT.pdf

Key Features

PNP epitaxial silicon, planar design.
Collector-emitter voltage VCE = -40V.
Collector current IC = -200mA.
Lead free in compliance with EU RoHS 2.0.
Green molding compound as per IEC 61249 standard 0.120(3.04) 0 . 11 0 ( 2 . 8 0 ) 0.056(1.40) 0.047(1.20) 0.079(2.00) 0.070(1.80) 0.006(0.15)MIN. 0.008(0.20) 0.003(0.08).
