L-C170JFCT-U1 - SURFACE MOUNT DEVICE LED

Features

  • Top view, wide view angle, single color Chip LED.  Package in 8mm tape on 7" diameter reels.  Compatible with automatic Pick & Place equipment.  Compatible with Infrared and Wave soldering reflow solder processes.  EIA STD package.  I. C. compatible.  Pb free product.  Meet RoHS Green Product.  Moisture sensitivity level: 3.

📥 Download Datasheet

Datasheet Details

Part number L-C170JFCT-U1
Manufacturer PARA LIGHT
File Size 1.11 MB
Description SURFACE MOUNT DEVICE LED
Datasheet download datasheet L-C170JFCT-U1 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
L-C150KGCT SURFACE MOUNT DEVICE LED HB Electronic Components
L-C150KRCT SURFACE MOUNT DEVICE LED HB Electronic Components
L-C191IR1CT SURFACE MOUNT DEVICE LED Para Light Electronics
L-C295KGKYCT SMD LED PARA LIGHT ELECTRONICS

Other Datasheets by PARA LIGHT

Part Number Description
L-C170ECT SMD CHIP LED
L-C170GCT SMD CHIP LED
L-C170GCT-U1 SURFACE MOUNT DEVICE LED
L-C170KFCT SMD CHIP LED
L-C170KGCT SMD CHIP LED

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

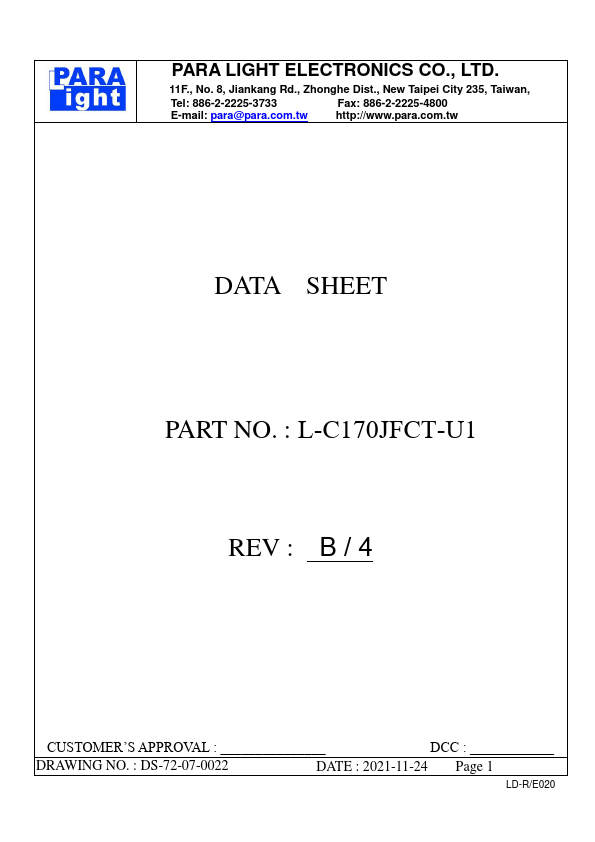

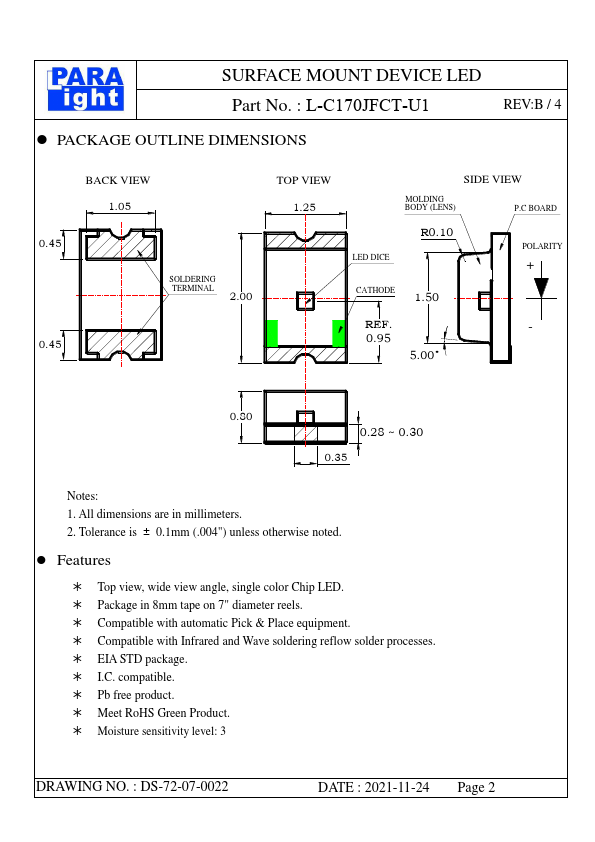

PARA LIGHT ELECTRONICS CO., LTD. 11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan, Tel: 886-2-2225-3733 E-mail: para@para.com.tw Fax: 886-2-2225-4800 http://www.para.com.tw DATA SHEET PART NO. : L-C170JFCT-U1 REV : B / 4 CUSTOMER’S APPROVAL : _______________ DCC : ____________ DRAWING NO. : DS-72-07-0022 DATE : 2021-11-24 Page 1 LD-R/E020 SURFACE MOUNT DEVICE LED Part No. : L-C170JFCT-U1  PACKAGE OUTLINE DIMENSIONS REV:B / 4 0.45 0.45 BACK VIEW 1.05 SOLDERING TERMINAL 2.00 TOP VIEW 1.25 SIDE VIEW MOLDING BODY (LENS) P.C BOARD LED DICE R0.10 POLARITY + CATHODE 1.50 REF. - 0.95 5.00° 0.80 0.28 ~ 0.30 0.35 Notes: 1. All dimensions are in millimeters. 2. Tolerance is ± 0.1mm (.004") unless otherwise noted.
