Datasheet Summary

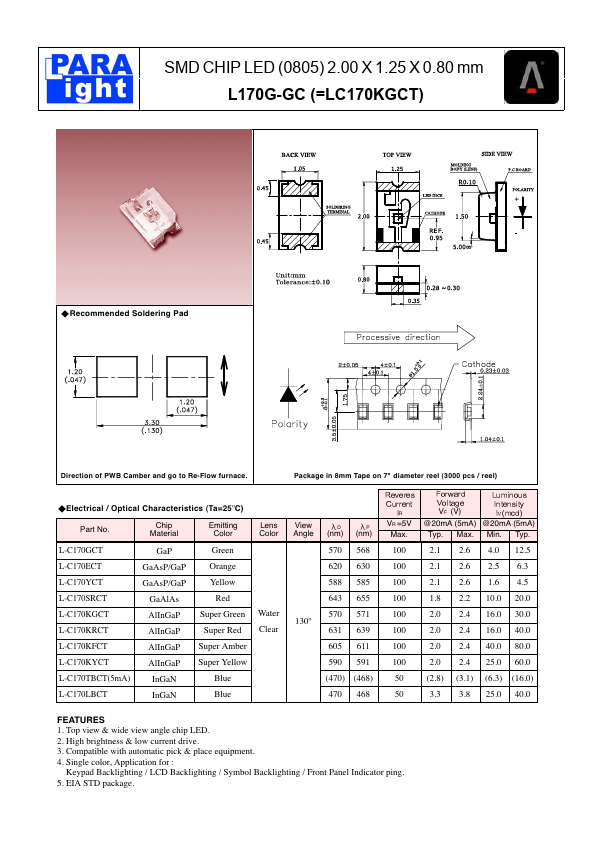

SMD CHIP LED (0805) 2.00 X 1.25 X 0.80 mm L170G-GC (=LC170KGCT)
Remended Soldering Pad
Direction of PWB Camber and go to Re-Flow furnace.
Package in 8mm Tape on 7" diameter reel (3000 pcs / reel)
Electrical / Optical Characteristics (Ta=25ºC)
Part No.
Chip Material
Emitting Color
Lens Color
L-C170GCT
GaP
Green
L-C170ECT
GaAsP/GaP
Orange
L-C170YCT
GaAsP/GaP
Yellow
L-C170SRCT L-C170KGCT L-C170KRCT
GaAlAs AlInGaP AlInGaP
Red Super Green Super Red
Water Clear
L-C170KFCT
AlInGaP Super Amber
L-C170KYCT
AlInGaP Super Yellow
L-C170TBCT(5mA) InGaN
Blue
L-C170LBCT
InGaN...
