L-C170WDT - SURFACE MOUNT DEVICE LED

Key Features

  •  Wide view angle, White color SMD chip LED .  Compatible with automatic Pick & Place equipment.  Compatible with Reflow soldering and Wave soldering processes.  EIA STD package. (ANSI/EIA-481-B-2001)  I. C. compatible, low current.

📥 Download Datasheet

Datasheet Details

Part number L-C170WDT
Manufacturer PARA LIGHT
File Size 657.95 KB
Description SURFACE MOUNT DEVICE LED
Datasheet download datasheet L-C170WDT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
L-C150KGCT SURFACE MOUNT DEVICE LED HB Electronic Components
L-C150KRCT SURFACE MOUNT DEVICE LED HB Electronic Components
L-C191IR1CT SURFACE MOUNT DEVICE LED Para Light Electronics
L-C295KGKYCT SMD LED PARA LIGHT ELECTRONICS

Other Datasheets by PARA LIGHT

Part Number Description
L-C170ECT SMD CHIP LED
L-C170GCT SMD CHIP LED
L-C170GCT-U1 SURFACE MOUNT DEVICE LED
L-C170JFCT-U1 SURFACE MOUNT DEVICE LED
L-C170KFCT SMD CHIP LED

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

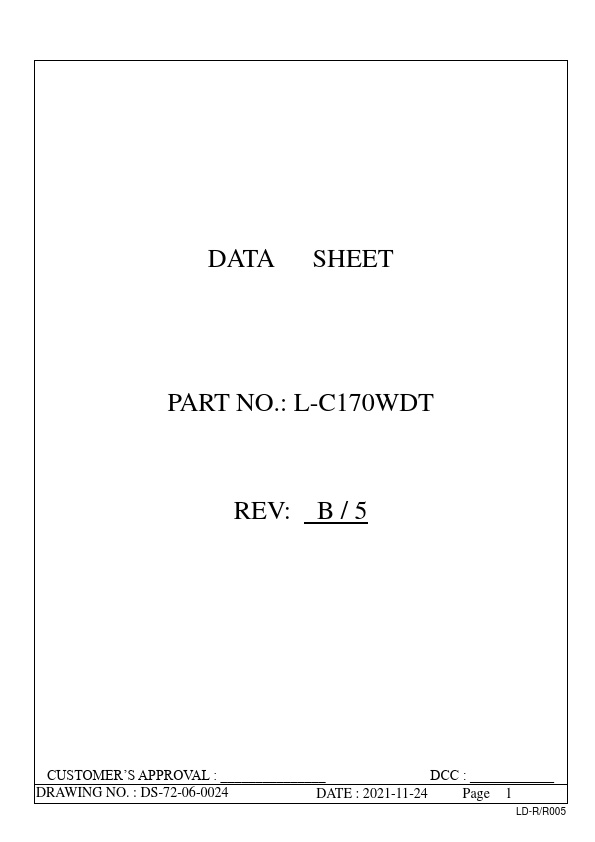

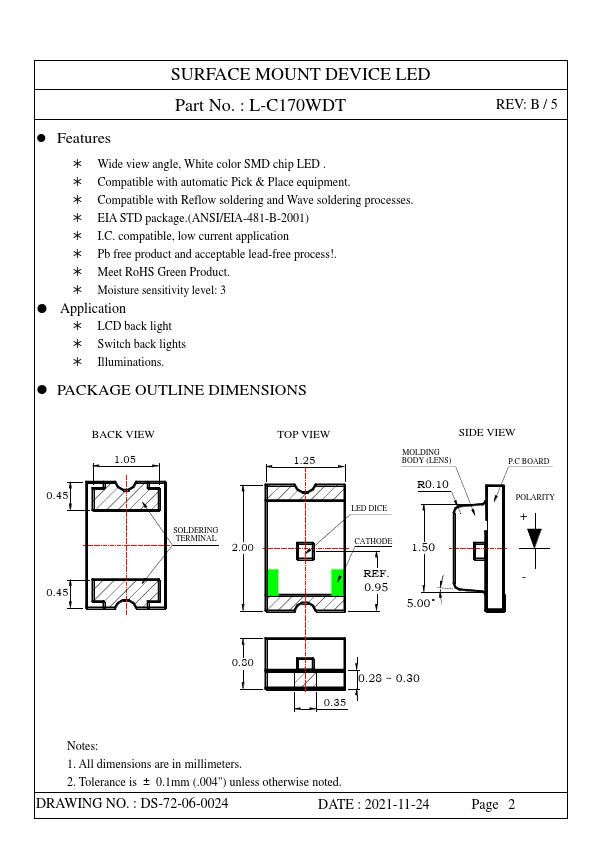

DATA SHEET PART NO.: L-C170WDT REV: B / 5 CUSTOMER’S APPROVAL : _______________ DCC : ____________ DRAWING NO. : DS-72-06-0024 DATE : 2021-11-24 Page 1 LD-R/R005 SURFACE MOUNT DEVICE LED Part No. : L-C170WDT  Features  Wide view angle, White color SMD chip LED .  Compatible with automatic Pick & Place equipment.  Compatible with Reflow soldering and Wave soldering processes.  EIA STD package.(ANSI/EIA-481-B-2001)  I.C. compatible, low current application  Pb free product and acceptable lead-free process!.  Meet RoHS Green Product.  Moisture sensitivity level: 3 ● Application  LCD back light  Switch back lights  Illuminations.  PACKAGE OUTLINE DIMENSIONS REV: B / 5 0.45 0.45 BACK VIEW 1.05 SOLDERING TERMINAL 2.00 TOP VIEW 1.25 SIDE VIEW MOLDING BODY (LENS) P.
