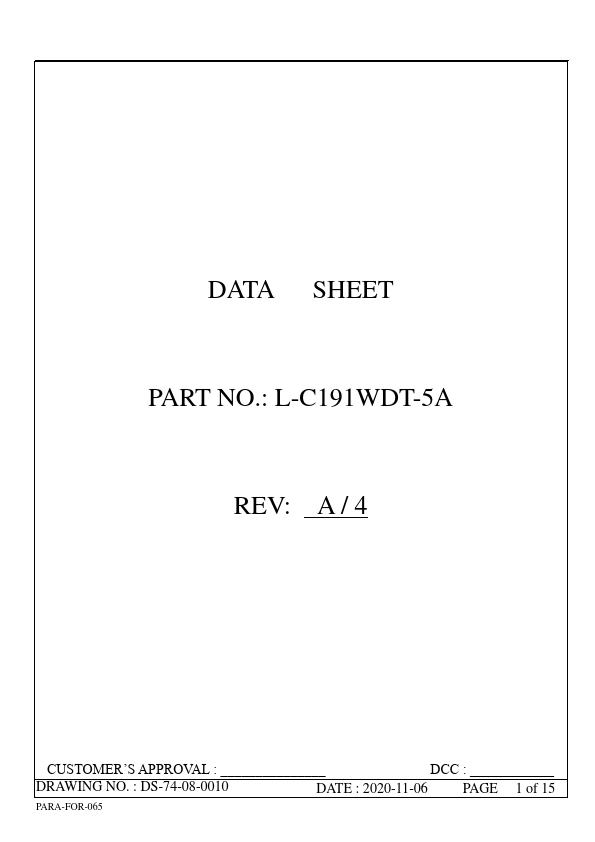

DATA SHEET PART NO.: L-C191WDT-5A REV: A / 4 CUSTOMER’S APPROVAL : _______________ DCC : ____________ DRAWING NO. : DS-74-08-0010 DATE : 2020-11-06 PAGE 1 of 15 PARA-FOR-065 SURFACE MOUNT DEVICE LED Part No. : L-C191WDT-5A REV: A / 4 - Features  Extra thin 0.6 mm, Top view, Wide view angle, White color SMD chip LED .  Special for Cellular Phone keypad / LCD backlighting or thin touch button LED backlighting.  Packing in 8mm tape on 7" diameter reels.  patible with automatic Pick & Place equipment.  patible with Reflow soldering and Wave soldering processes.  EIA STD package.(ANSI/EIA-481-B-2001)  I.C. patible, low current application  Pb free product and acceptable...
