L-C19F1RGBCT-CA-U1 Datasheet Surface Mount Device Led

Manufacturer: PARA LIGHT

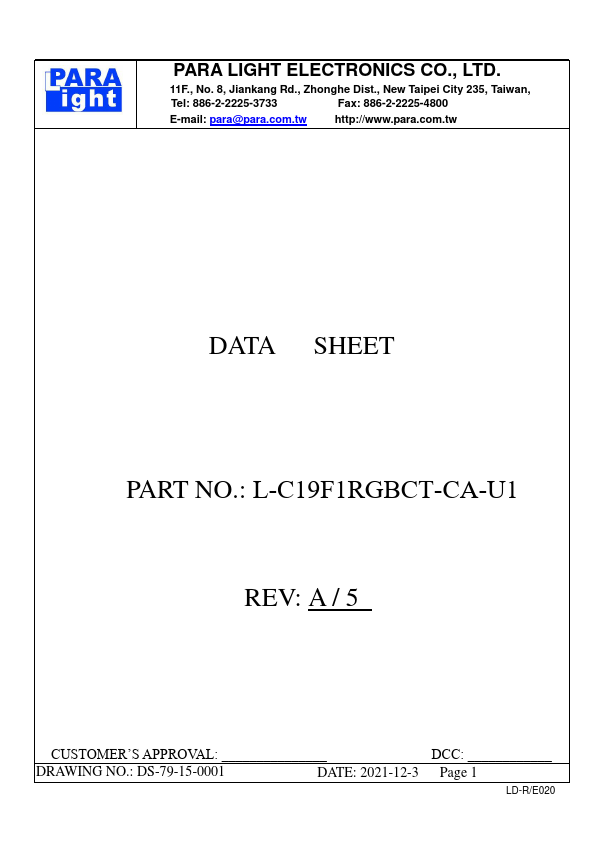

Overview: PARA LIGHT ELECTRONICS CO., LTD. 11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan, Tel: 886-2-2225-3733 Fax: 886-2-2225-4800 E-mail: para@para.com.tw http://www.para.com.tw DATA SHEET PART NO.: L-C19F1RGBCT-CA-U1 REV: A / 5 CUSTOMER’S APPROVAL: _______________ DCC: ____________ DRAWING NO.: DS-79-15-0001 DATE: 2021-12-3 Page 1 LD-R/E020 SURFACE MOUNT DEVICE LED Part No.: L-C19F1RGBCT-CA-U1  PACKAGE OUTLINE DIMENSIONS REV:A / 5 POLARITY Notes: 1. a chip: Red; b chip: Green; c chip: Blue 2. All dimensions are in millimeters. 3. Tolerance is ± 0.1mm (.004”) unless otherwise noted.

Key Features

  • hree color, top view, wide view angle Chip LED.  Package in 8mm tape on 7” diameter reels.  Compatible with automatic Pick & Place equipment.  Compatible with Reflow soldering and Wave soldering processes.  EIA STD package.  I. C. compatible.  Pb free product.  Moisture sensitivity level: 3.
