L-C19F1RGBCT-CA
L-C19F1RGBCT-CA is SURFACE MOUNT DEVICE LED manufactured by PARA LIGHT.
PARA LIGHT ELECTRONICS CO., LTD.
11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan,
Tel: 886-2-2225-3733
Fax: 886-2-2225-4800
E-mail: para@para..tw http://.para..tw

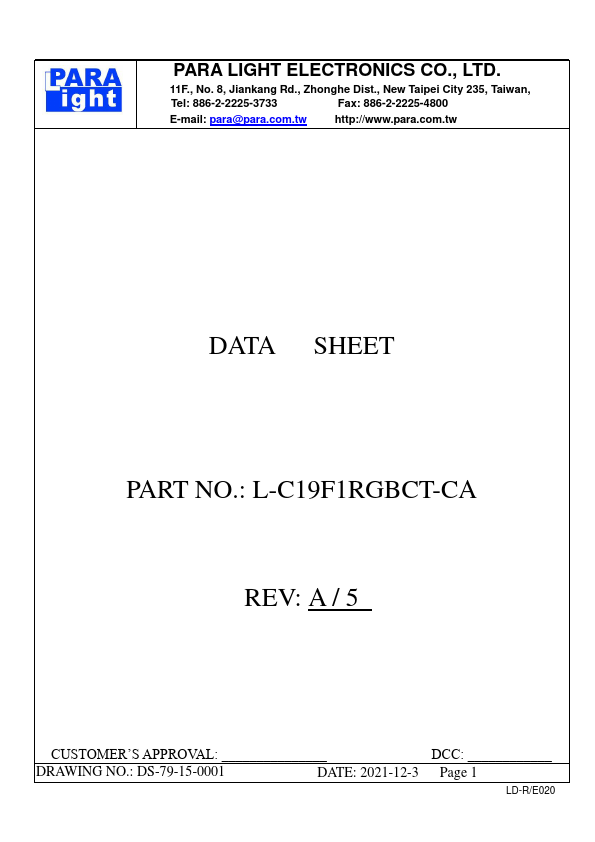

DATA SHEET PART NO.: L-C19F1RGBCT-CA
REV: A / 5
CUSTOMER’S APPROVAL: _______________
DCC: ____________
DRAWING NO.: DS-79-15-0001
DATE: 2021-12-3 Page 1
LD-R/E020
SURFACE MOUNT DEVICE LED
Part No.: L-C19F1RGBCT-CA
REV:A / 5

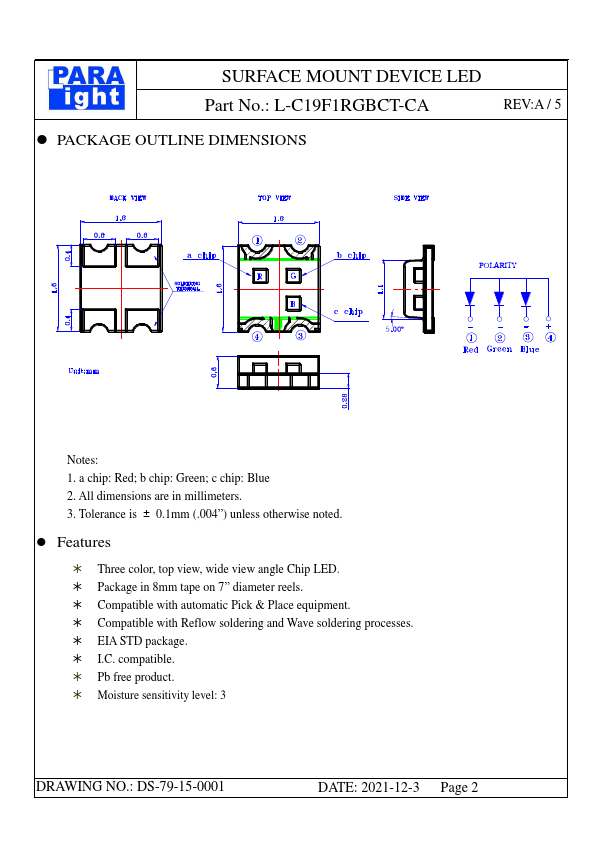

- PACKAGE OUTLINE DIMENSIONS
POLARITY
Notes: 1. a chip: Red; b chip: Green; c chip: Blue 2. All dimensions are in millimeters. 3. Tolerance is ± 0.1mm (.004”) unless otherwise noted.
- Features
Three color, top view, wide view angle Chip LED. Package in 8mm...
