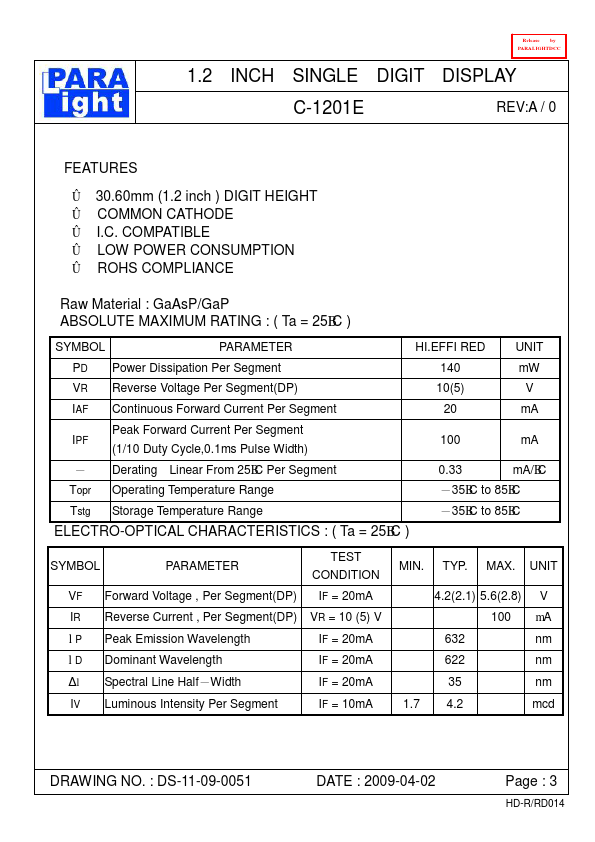

C-1201E
FEATURES
Û 30.60mm (1.2 inch ) DIGIT HEIGHT Û MON CATHODE Û I.C. PATIBLE Û LOW POWER CONSUMPTION Û ROHS PLIANCE
Raw Material : Ga As P/Ga P ABSOLUTE MAXIMUM RATING : ( Ta = 25BC )
SYMBOL
PARAMETER
HI.EFFI RED UNIT
PD Power Dissipation Per Segment
140 m W
VR Reverse Voltage Per Segment(DP)
10(5)
IAF Continuous Forward Current Per Segment
20 m A
Peak Forward Current Per Segment IPF
(1/10 Duty Cycle,0.1ms Pulse Width)
100 m A
－ Derating Linear From 25BC Per Segment
0.33 m A/BC
Topr Operating Temperature Range
－35BC to 85BC
Tstg Storage Temperature Range
－35BC to 85BC
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25BC )
SYMBOL
PARAMETER
TEST CONDITION
VF Forward Voltage , Per Segment(DP) IF = 20m A
IR Reverse Current , Per Segment(DP) VR = 10 (5) V l P Peak Emission Wavelength
IF = 20m A l D Dominant Wavelength
IF = 20m A
Δl Spectral Line Half－Width
IF = 20m A
IV Luminous Intensity Per Segment
IF = 10m A
MIN. TYP. MAX. UNIT
4.2(2.1) 5.6(2.8) V
100 m A
632 nm
622...
