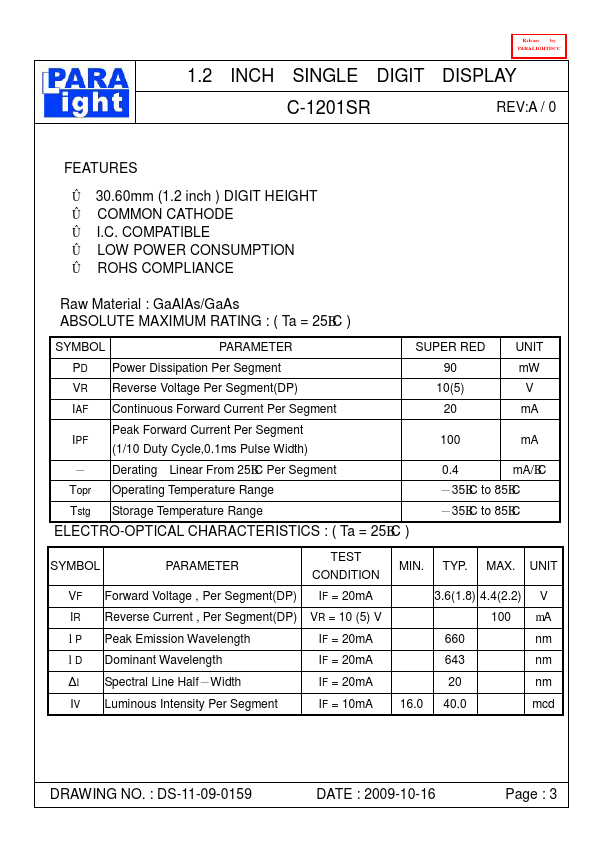

C-1201SR
FEATURES
Û 30.60mm (1.2 inch ) DIGIT HEIGHT Û MON CATHODE Û I.C. PATIBLE Û LOW POWER CONSUMPTION Û ROHS PLIANCE
Raw Material : Ga Al As/Ga As ABSOLUTE MAXIMUM RATING : ( Ta = 25BC )
SYMBOL
PARAMETER
SUPER RED UNIT
PD Power Dissipation Per Segment
90 m W
VR Reverse Voltage Per Segment(DP)
10(5)
IAF Continuous Forward Current Per Segment
20 m A
Peak Forward Current Per Segment IPF
(1/10 Duty Cycle,0.1ms Pulse Width)
100 m A
－ Derating Linear From 25BC Per Segment
0.4 m A/BC
Topr Operating Temperature Range
－35BC to 85BC
Tstg Storage Temperature Range
－35BC to 85BC
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25BC )
SYMBOL
PARAMETER
TEST CONDITION
VF Forward Voltage , Per Segment(DP) IF = 20m A
IR Reverse Current , Per Segment(DP) VR = 10 (5) V l P Peak Emission Wavelength
IF = 20m A l D Dominant Wavelength
IF = 20m A
Δl Spectral Line Half－Width
IF = 20m A
IV Luminous Intensity Per Segment
IF = 10m A
MIN. TYP. MAX. UNIT
3.6(1.8) 4.4(2.2) V
100 m A
660 nm
643...
