GNP2025TD-Z - 650V Enhancement mode GaN HEMT

ROHM

Key Features

650V E-mode GaN HEMT 25mΩ Resistance 13.2nC Gate Charge Package Information W (Typ) × D (Typ) × H (Max) 11.68 mm × 9.9 mm × 2.4 mm TOLL-8N.

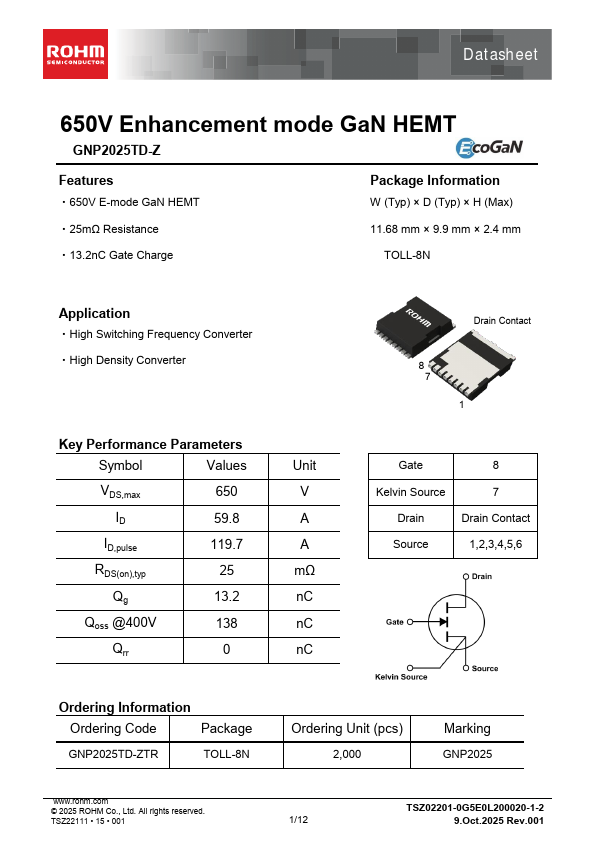

GNP2025TD-Z 650v enhancement mode gan hemt by ROHM - Datasheet Preview

Datasheet Details

Part number	GNP2025TD-Z
Manufacturer	ROHM
File Size	3.20 MB
Description	650V Enhancement mode GaN HEMT
Datasheet	GNP2025TD-Z Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer

Other Datasheets by ROHM

Part Number	Description
GNP2050TD-Z	650V Enhancement mode GaN HEMT
GNP2050TEC-Z	650V Enhancement mode GaN HEMT
GNP2070TD-Z	650V Enhancement mode GaN HEMT
GNP2130TEC-Z	650V Enhancement mode GaN HEMT

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

Datasheet 650V Enhancement mode GaN HEMT GNP2025TD-Z Features 650V E-mode GaN HEMT 25mΩ Resistance 13.2nC Gate Charge Package Information W (Typ) × D (Typ) × H (Max) 11.68 mm × 9.9 mm × 2.4 mm TOLL-8N Application High Switching Frequency Converter High Density Converter Key Performance Parameters Symbol Values Unit VDS,max 650 V ID 59.8 A ID,pulse 119.7 A RDS(on),typ 25 mΩ Qg 13.2 nC Qoss @400V 138 nC Qrr 0 nC Drain Contact 8 7 1 Gate 8 Kelvin Source 7 Drain Drain Contact Source 1,2,3,4,5,6 Ordering Information Ordering Code Package GNP2025TD-ZTR TOLL-8N Ordering Unit (pcs) 2,000 Marking GNP2025 www.rohm.com © 2025 ROHM Co., Ltd. All rights reserved. TSZ22111 • 15 • 001 1/12 TSZ02201-0G5E0L200020-1-2 9.Oct.2025 Rev.
