GNP2050TEC-Z - 650V Enhancement mode GaN HEMT

Key Features

  • 650V E-mode GaN HEMT 50mΩ Resistance 6.4nC Gate Charge Datasheet Package Information W (Typ) × D (Typ) × H (Max) 8.0mm × 8.0mm × 1.0mm DFN8080CK.

📥 Download Datasheet

Datasheet Details

Part number GNP2050TEC-Z
Manufacturer ROHM
File Size 3.30 MB
Description 650V Enhancement mode GaN HEMT
Datasheet download datasheet GNP2050TEC-Z Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by ROHM

Part Number Description
GNP2050TD-Z 650V Enhancement mode GaN HEMT
GNP2025TD-Z 650V Enhancement mode GaN HEMT
GNP2070TD-Z 650V Enhancement mode GaN HEMT
GNP2130TEC-Z 650V Enhancement mode GaN HEMT

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

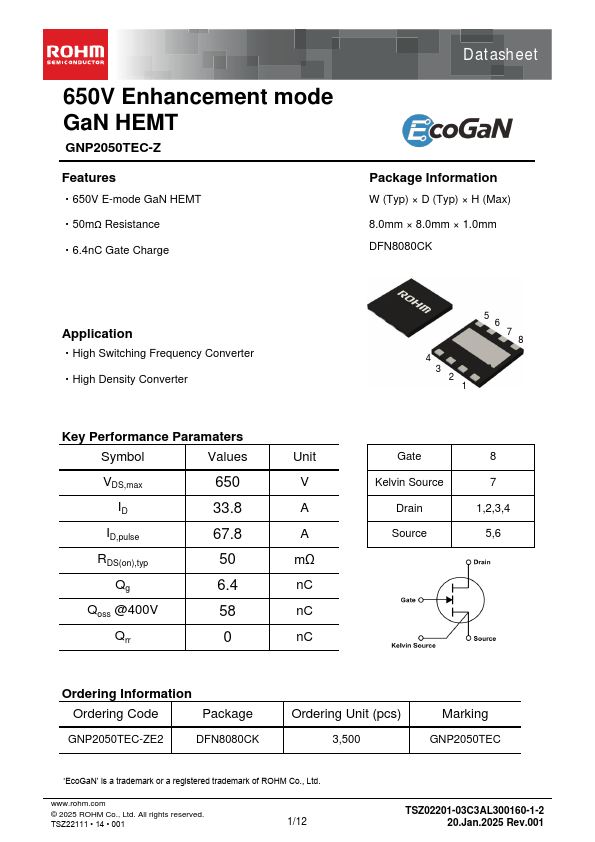

650V Enhancement mode GaN HEMT GNP2050TEC-Z Features 650V E-mode GaN HEMT 50mΩ Resistance 6.4nC Gate Charge Datasheet Package Information W (Typ) × D (Typ) × H (Max) 8.0mm × 8.0mm × 1.0mm DFN8080CK Application High Switching Frequency Converter High Density Converter Key Performance Paramaters Symbol Values Unit VDS,max ID ID,pulse RDS(on),typ Qg Qoss @400V Qrr 650 V 33.8 A 67.8 A 50 mΩ 6.4 nC 58 nC 0 nC 4 3 2 1 5 6 7 8 Gate Kelvin Source Drain Source 8 7 1,2,3,4 5,6 Ordering Information Ordering Code Package GNP2050TEC-ZE2 DFN8080CK Ordering Unit (pcs) 3,500 Marking GNP2050TEC ‘EcoGaN’ is a trademark or a registered trademark of ROHM Co., Ltd. www.rohm.com © 2025 ROHM Co., Ltd. All rights reserved. TSZ22111 • 14 • 001 1/12 TSZ02201-03C3AL300160-1-2 20.
