MCR18L Datasheet | ROHM

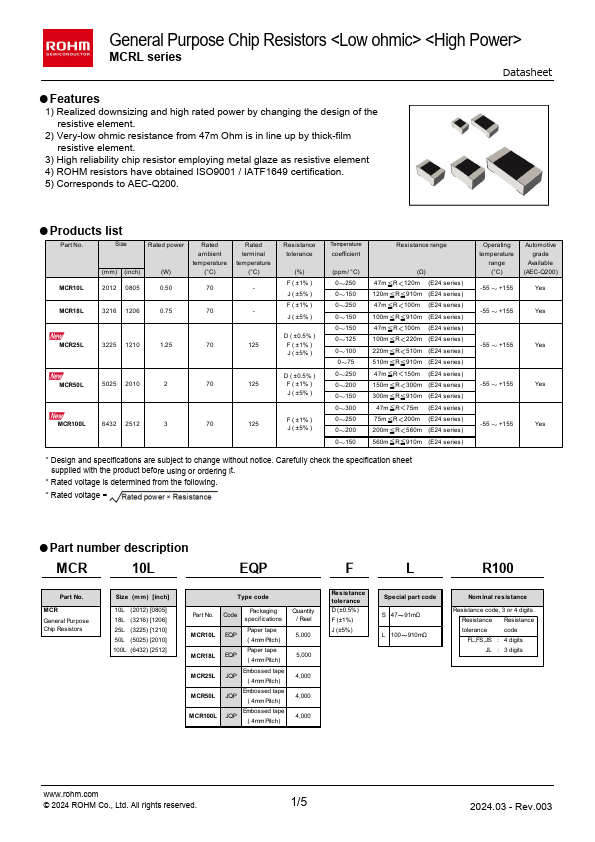

Features 1) Realized downsizing and high rated power by changing the design of the resistive element. 2) Very-low ohmic resistance from 47m Ohm is in line up by thick-film resistive element. 3) High reliability chip resistor employing metal glaze as resistive element 4) ROHM resistors have obtained ISO9001 / IATF1649 certification. 5) Corresponds to AEC-Q200. - Products list Part No. Size Rated power (mm) (inch) (W) Rated ambient tem perature (°C) Rated term inal tem perature (°C) MCR10L 2012 0805 - MCR18L 3216 1206 - Res is tance tolerance (%) F ( ±1% ) J ( ±5% ) F ( ±1% ) J ( ±5% ) D ( ±0.5% ) MCR25L 3225 1210 F ( ±1% ) J ( ±5% ) MCR50L 5025 2010 D ( ±0.5% ) F ( ±1% ) J ( ±5%...
