2SJ601 Datasheet P-channel Power MOSFET

Manufacturer: Renesas

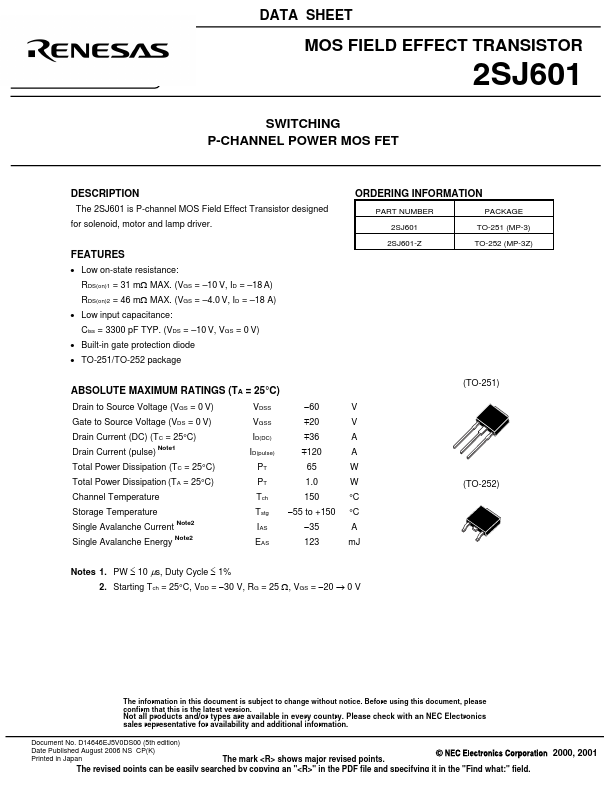

Overview: DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SJ601 SWITCHING P-CHANNEL POWER MOS.

Datasheet Details

Part number 2SJ601
Manufacturer Renesas
File Size 153.45 KB
Description P-CHANNEL POWER MOSFET
Datasheet 2SJ601-Renesas.pdf

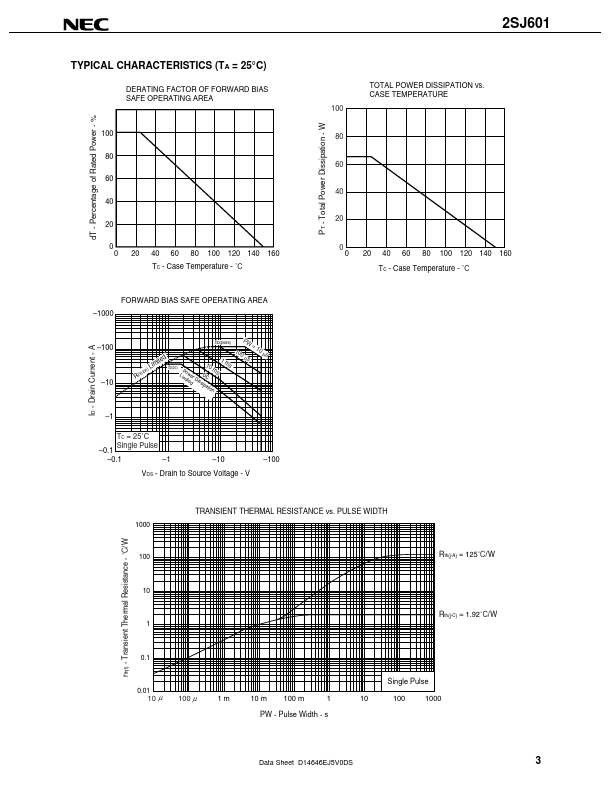

General Description

The 2SJ601 is P-channel MOS Field Effect Transistor designed for solenoid, motor and lamp driver.

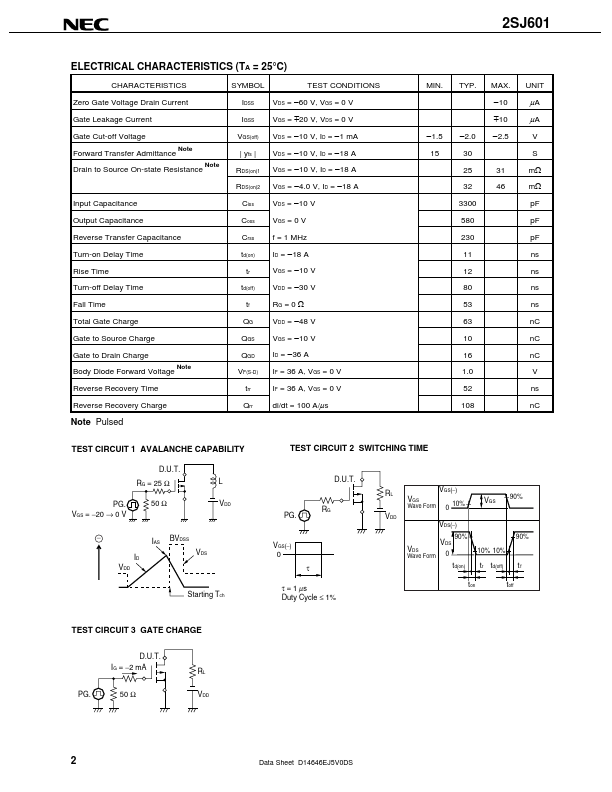

Key Features

  • Low on-state resistance: RDS(on)1 = 31 mΩ MAX. (VGS =.
  • 10 V, ID =.
  • 18 A) RDS(on)2 = 46 mΩ MAX. (VGS =.
  • 4.0 V, ID =.
  • 18 A).
  • Low input capacitance: Ciss = 3300 pF TYP. (VDS =.
  • 10 V, VGS = 0 V).
  • Built-in gate protection diode.
  • TO-251/TO-252 package.
