2SJ601 - 60V P-Channel MOSFET

VBsemi

Key Features

Trench Power MOSFET.
Package with Low Thermal Resistance.
100 % Rg and UIS Tested TO-251 S G D P-Channel MOSFET Drain Connected to Drain-Tab GDS Top View.

2SJ601 60v p-channel mosfet by VBsemi - Datasheet Preview

Datasheet Details

Part number	2SJ601
Manufacturer	VBsemi
File Size	230.52 KB
Description	60V P-Channel MOSFET
Datasheet	2SJ601 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SJ601	P-Channel Power MOSFET	NEC
2SJ601	MOS Field Effect Transistor	Kexin
2SJ601	P-CHANNEL POWER MOSFET	Renesas
2SJ600	P-Channel Power MOSFET	NEC
2SJ600	MOSFET	Kexin

Other Datasheets by VBsemi

Part Number	Description
2SJ602	60V P-Channel MOSFET
2SJ603	60V P-Channel MOSFET
2SJ604	60V P-Channel MOSFET
2SJ604-Z	60V P-Channel MOSFET
2SJ605	60V P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

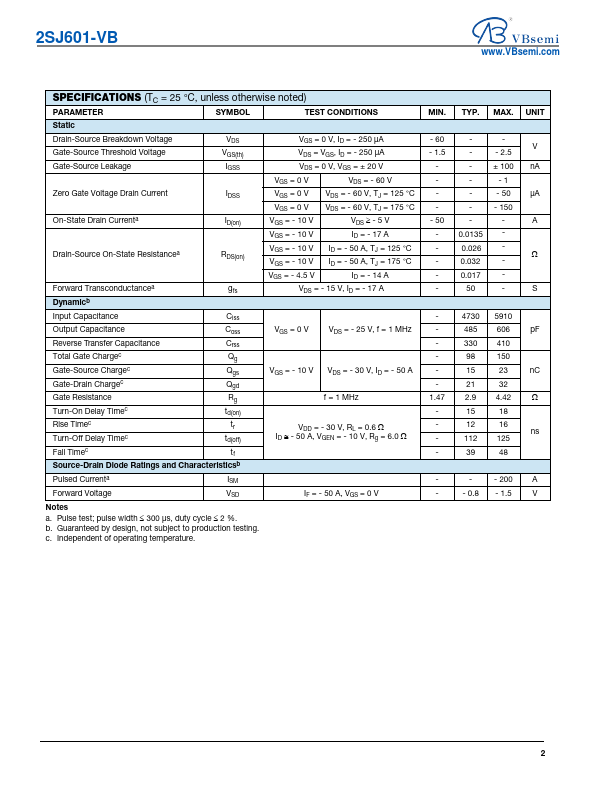

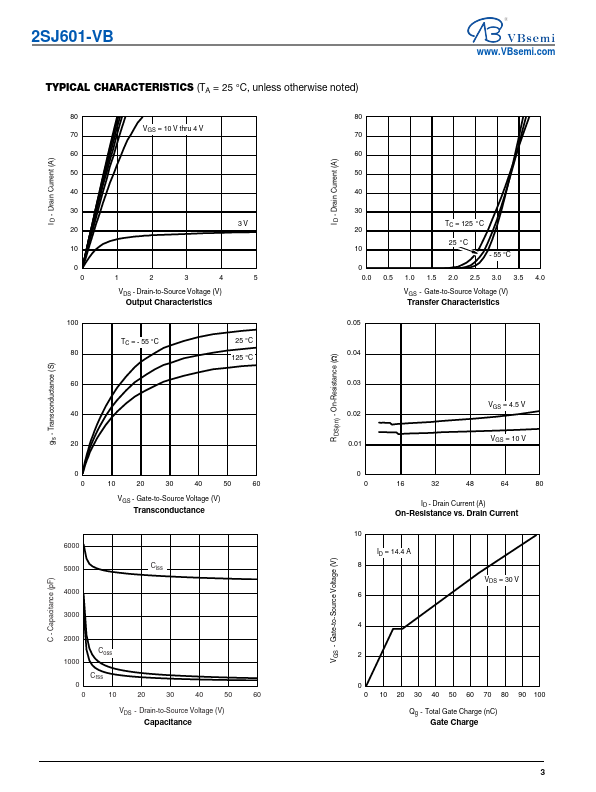

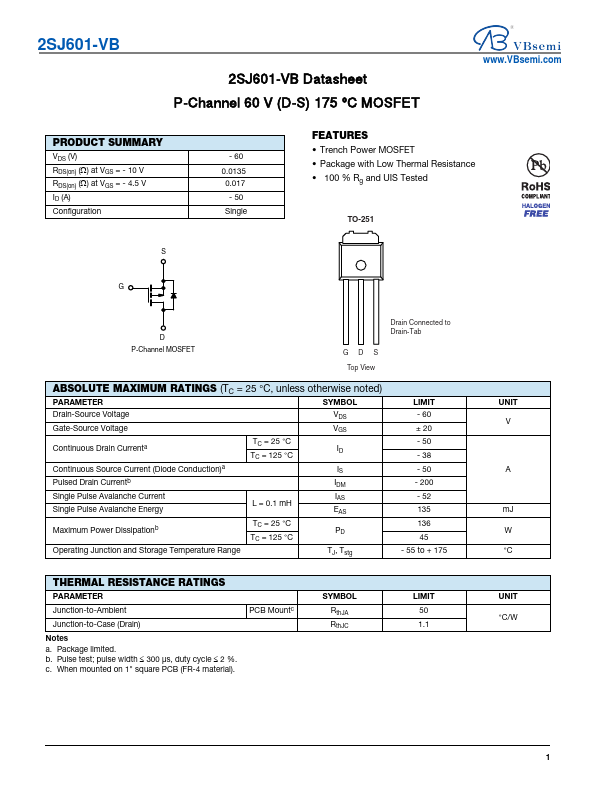

2SJ601-VB 2SJ601-VB Datasheet P-Channel 60 V (D-S) 175 °C MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () at VGS = - 10 V RDS(on) () at VGS = - 4.5 V ID (A) Configuration - 60 0.0135 0.017 - 50 Single FEATURES • Trench Power MOSFET • Package with Low Thermal Resistance • 100 % Rg and UIS Tested TO-251 S G D P-Channel MOSFET Drain Connected to Drain-Tab GDS Top View ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Currenta TC = 25 °C TC = 125 °C ID Continuous Source Current (Diode Conduction)a IS Pulsed Drain Currentb IDM Single Pulse Avalanche Current Single Pulse Avalanche Energy L = 0.
