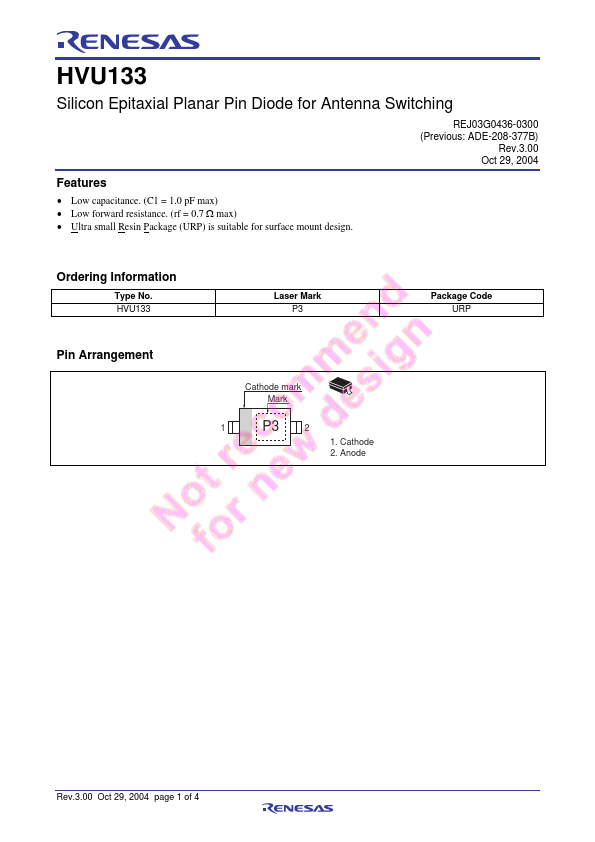

HVU133
Features
- Low capacitance. (C1 = 1.0 p F max)
- Low forward resistance. (rf = 0.7 Ω max)
- Ultra small Resin Package (URP) is suitable for surface mount design.
Ordering Information
Type No. HVU133
Pin Arrangement
Laser Mark P3
Cathode mark Mark
P3 2
1. Cathode 2. Anode
Package Code URP
Rev.3.00 Oct 29, 2004 page 1 of 4

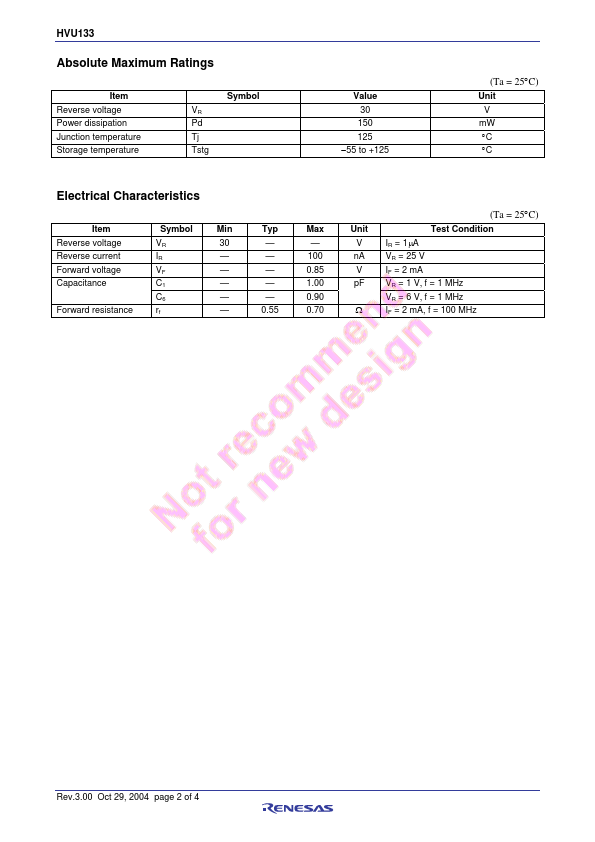

Absolute Maximum Ratings
Item Reverse voltage Power dissipation Junction temperature Storage temperature
VR Pd Tj Tstg
Symbol
Value 30 150 125
- 55 to +125
(Ta = 25°C)
Unit V m W °C °C
Electrical Characteristics
(Ta = 25°C)
Item
Symbol
Min
Typ
Max
Unit
Test Condition
Reverse voltage
Reverse current
Forward voltage
Capacitance
C1
C6...
