HVU131
Features
- Low capacitance. (C = 0.8 p F max)
- Low forward resistance. (rf = 1.0 Ω max)
- Ultra small Resin Package (URP) is suitable for surface mount design.
Ordering Information
Type No. HVU131
Pin Arrangement
Laser Mark P1
Cathode mark Mark
P1 2
1. Cathode
2. Anode
Package Code URP
Rev.6.00 Oct 29, 2004 page 1 of 4

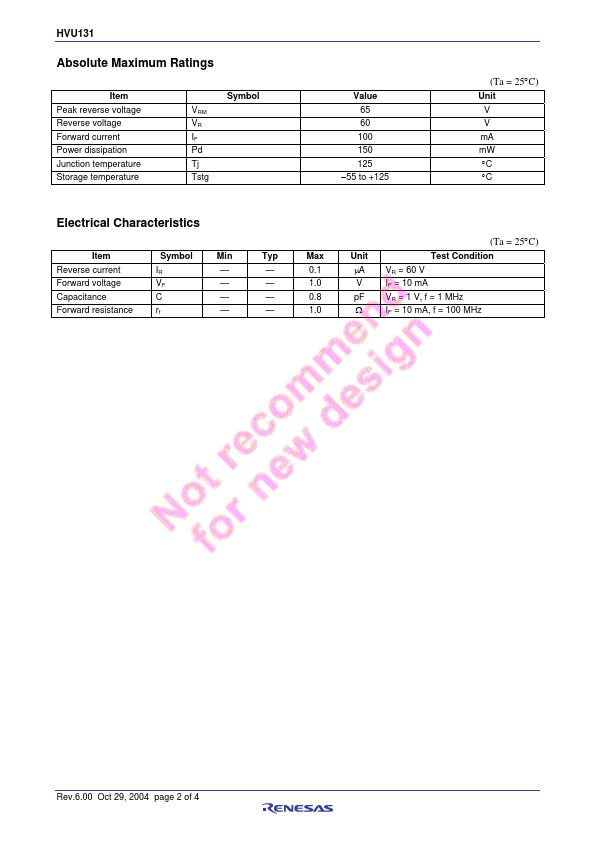

Absolute Maximum Ratings
Item Peak reverse voltage Reverse voltage Forward current Power dissipation Junction temperature Storage temperature
VRM VR IF Pd Tj Tstg
Symbol
Value 65 60 100 150 125
- 55 to +125
(Ta = 25°C)
Unit V V m A m W °C °C
Electrical Characteristics
(Ta = 25°C)
Item
Symbol
Min
Typ
Max
Unit
Test Condition
Reverse current
Forward voltage
Capacitance
Forward resistance rf
- -...
