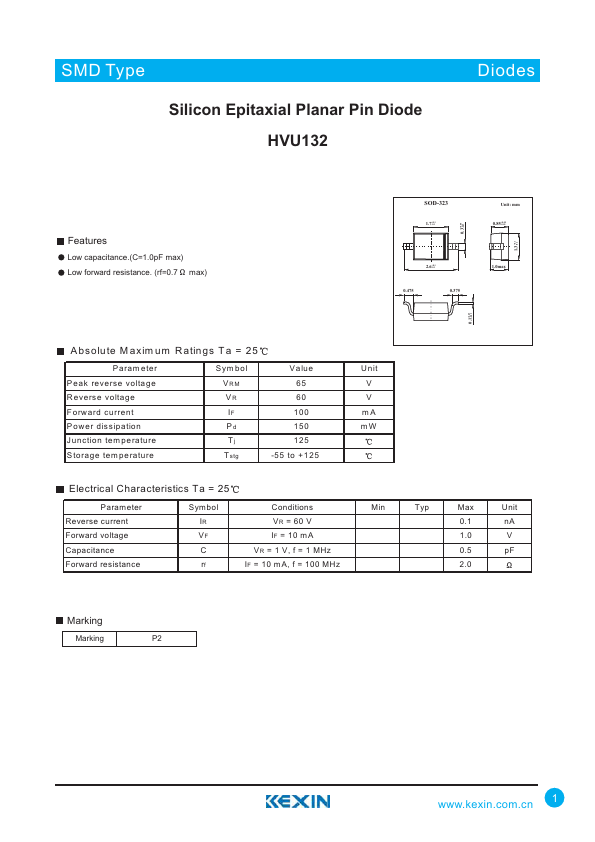

HVU132
Features
Low capacitance.(C=1.0p F max) Low forward resistance. (rf=0.7 max)
SOD-323
1.7+0.1 -0.1
Unit: mm 0.85+0.05
-0.05
+0.05 0.3 -0.05
+0.1 1.3 -0.1
2.6+0.1 -0.1
1.0max
+0.05 0.1 -0.02
Absolute M axim um R atings Ta = 25
Param eter Peak reverse voltage Reverse voltage Forward current Power dissipation Junction tem perature Storage tem perature
Sym bol VRM VR IF Pd Tj T stg
V a lu e 65 60 100 150 125
-55 to +125
U n it V V m A m W
Electrical Characteristics Ta = 25
P aram eter Reverse current Forward voltage Capacitance Forward resistance
Symbol
Conditions
Min
Typ
Max
Unit
VR = 60 V
0.1 n A
IF = 10 m A
VR = 1 V, f = 1 MHz
0.5 p F rf
IF = 10 m A, f = 100 MHz
Marking
Marking...
