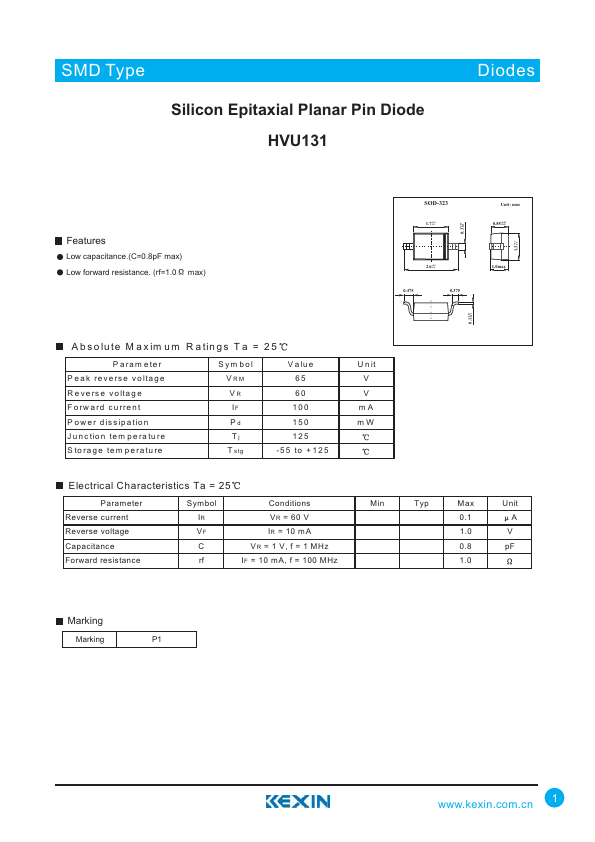

HVU131
Features
Low capacitance.(C=0.8p F max) Low forward resistance. (rf=1.0 max)
SOD-323
1.7+0.1 -0.1
Unit: mm 0.85+0.05
-0.05
+0.05 0.3 -0.05
+0.1 1.3 -0.1
2.6+0.1 -0.1
1.0max
+0.05 0.1 -0.02
A b s o lu te M a x im u m R a tin g s T a = 2 5
P aram eter P eak reverse voltage R everse voltage Forward current P ow er dissipation Junction tem perature S torage tem perature
Sym bol VRM VR IF Pd Tj T stg
V alue 65 60 100 150 125
-55 to +125
U nit V V m A m W
Electrical Characteristics Ta = 25
P aram eter Reverse current Reverse voltage Capacitance Forward resistance
Symbol IR VF C rf
Conditions VR = 60 V IR = 10 m A VR = 1 V, f = 1 MHz IF = 10 m A, f = 100 MHz
Min
Typ
Max
Unit
0.8 p F
Marking
Marking
P1
