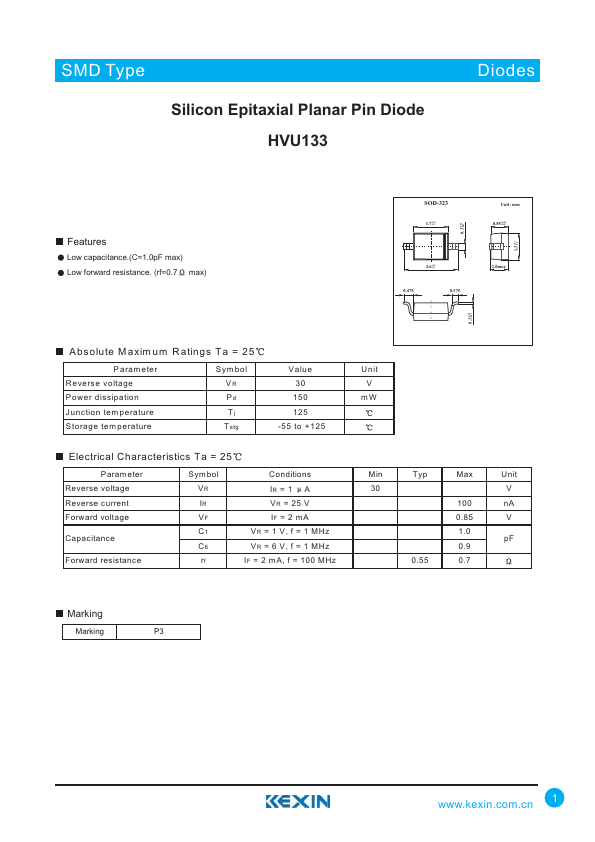

HVU133
Features
Low capacitance.(C=1.0p F max) Low forward resistance. (rf=0.7 max)
SOD-323
1.7+0.1 -0.1
Unit: mm 0.85+0.05
-0.05
+0.05 0.3 -0.05
+0.1 1.3 -0.1
2.6+0.1 -0.1
1.0max
+0.05 0.1 -0.02
Absolute M axim um Ratings Ta = 25
Param eter Reverse voltage Power dissipation Junction tem perature Storage tem perature
Sym bol VR Pd Tj T stg
V a lu e 30 150 125
-55 to +125
U n it V m W
Electrical Characteristics Ta = 25
P aram eter Reverse voltage Reverse current Forward voltage
Capacitance
Forward resistance
Symbol VR IR VF C1 C6 rf
Conditions IR = 1 A VR = 25 V IF = 2 m A VR = 1 V, f = 1 MHz VR = 6 V, f = 1 MHz IF = 2 m A, f = 100 MHz
Min
Typ
Max
Unit
100 n A
1.0 p F
Marking
Marking
P3
