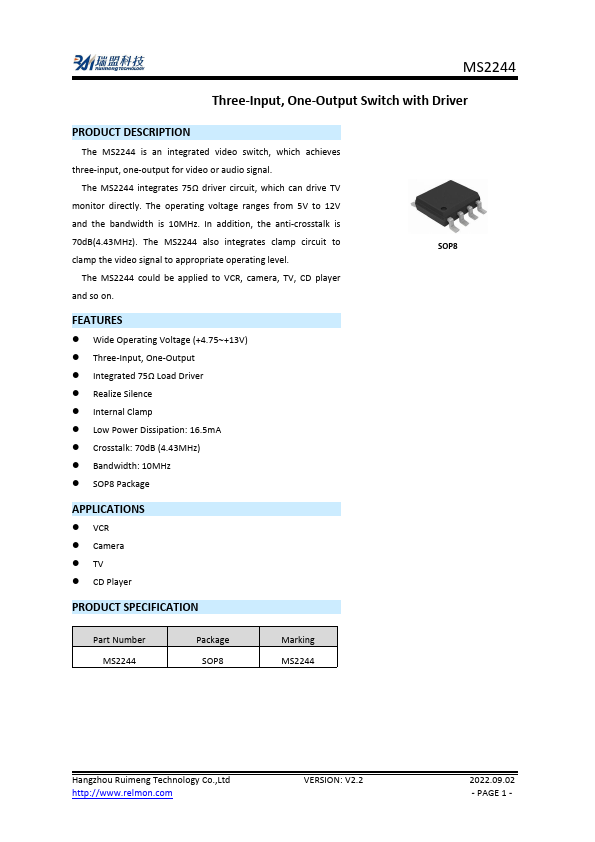

MS2244
MS2244 is Three-Input One-Output Switch manufactured by Ruimeng.
DESCRIPTION
The MS2244 is an integrated video switch, which achieves threeinput, oneoutput for video or audio signal.
The MS2244 integrates 75Ω driver circuit, which can drive TV monitor directly. The operating voltage ranges from 5V to 12V and the bandwidth is 10MHz. In addition, the anticrosstalk is
70d B(4.43MHz). The MS2244 also integrates clamp circuit to clamp the video signal to appropriate operating level.
SOP8
The MS2244 could be applied to VCR, camera, TV, CD player and so on.
FEATURES
- Wide Operating Voltage (+4.75+13V)
- ThreeInput, OneOutput
- Integrated 75Ω Load Driver
- Realize Silence
- Internal Clamp
- Low Power Dissipation: 16.5m A
- Crosstalk: 70d B (4.43MHz)
- Bandwidth: 10MHz
- SOP8 Package
APPLICATIONS
- VCR
- Camera
- TV
- CD Player
PRODUCT SPECIFICATION
Part Number MS2244
Package SOP8
Marking MS2244
Hangzhou Ruimeng Technology Co.,Ltd http://.relmon.
VERSION: V2.2
2022.09.02 PAGE 1

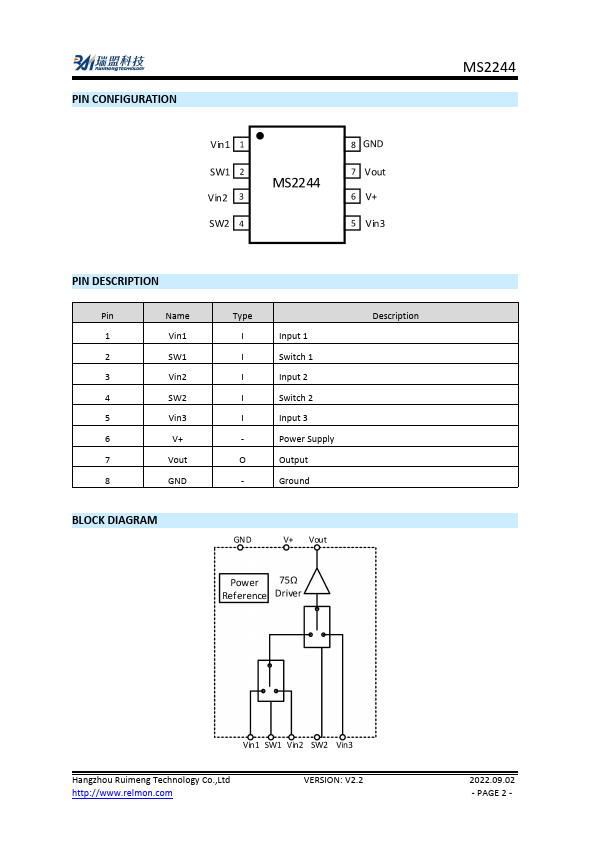

PIN CONFIGURATION
PIN DESCRIPTION
Pin
Name
Vin1
SW1
Vin2

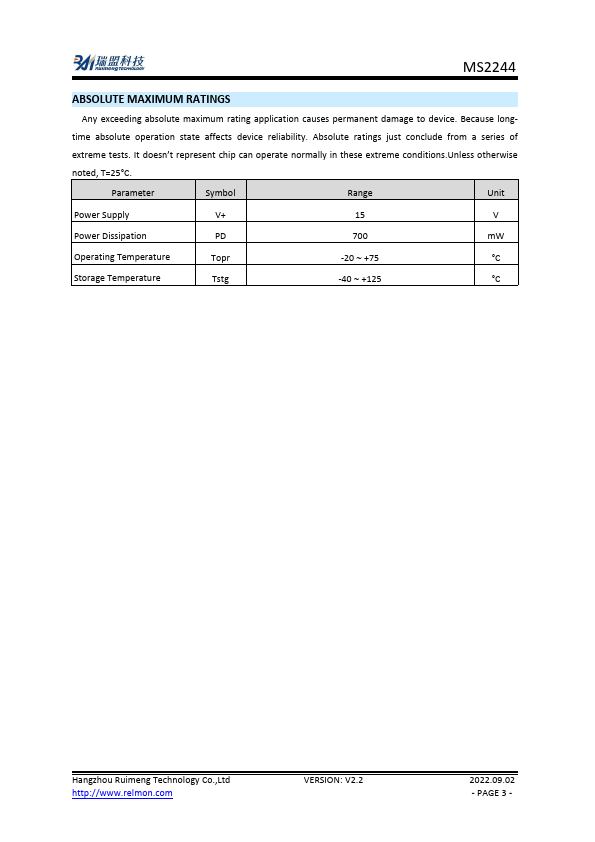

SW2...
