MS90C032 - LVDS Quad CMOS Receiver

Description

The MS90C032/MS90C032T is a low power dissipation, high data rate, quad CMOS differential LVDS signal receiver.

The main function is receiving low voltage (350mV) differential signals and translating them to CMOS (compatible with TTL) output voltage.

Features

  • More than 155.5Mbps (77.7MHz) Switch Frequency.
  • Low Power Dissipation.
  • the Maximum 600ps Channel Propagation Delay Difference.
  • the Maximum 6.0ns Propagation Delay.
  • Support Input Open­circuit State.
  • Support Input Short­circuit and Fault Biasing.
  • Compatible with IEEE 1596.3 SCI LVDS, ANSI Standard.
  • Compatible with TIA/EIA­644 LVDS Standard.
  • Apply to SMD5962­95834 Standard.
  • SOP16, TSSOP16 Package.

📥 Download Datasheet

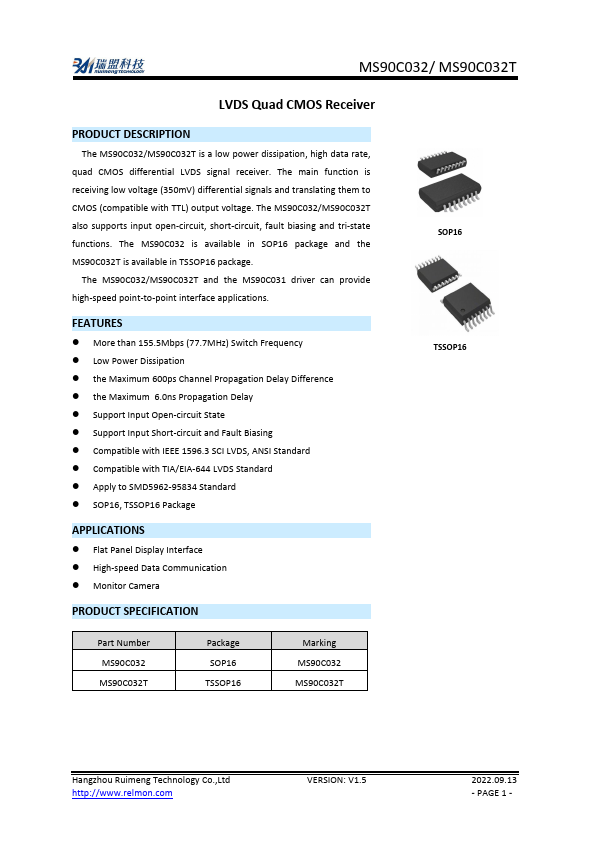

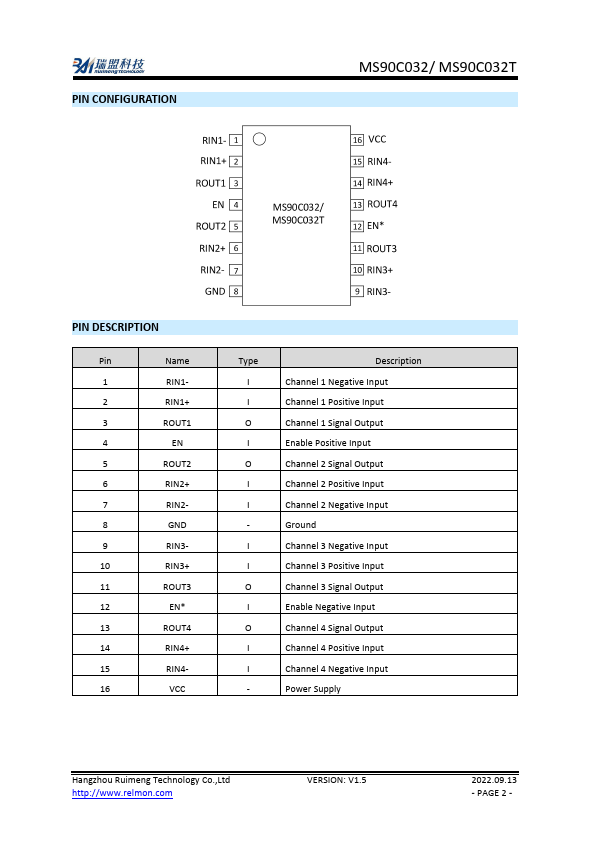

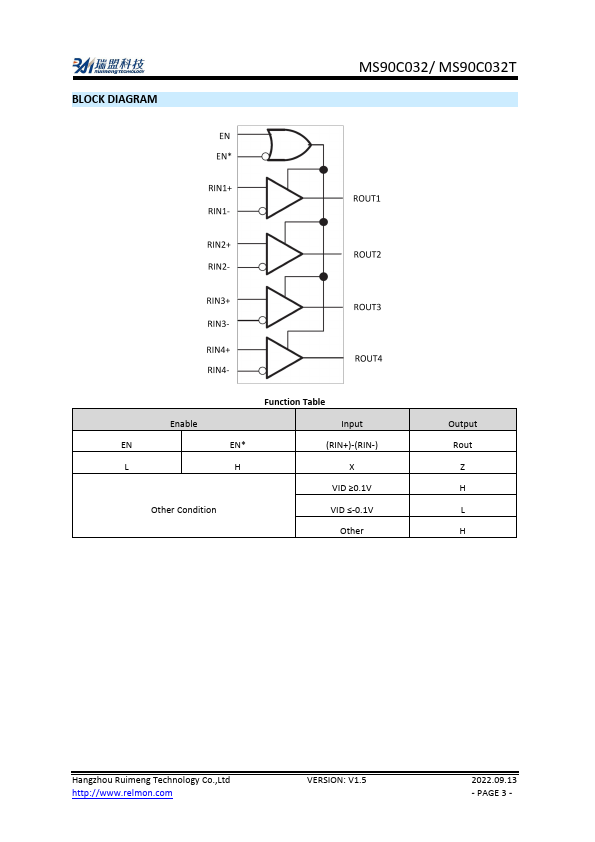

Datasheet preview – MS90C032
