MS9710 - High-speed Low Power Dissipation DAC

Download the MS9710 datasheet PDF. This datasheet also covers the MS9708 variant, as both devices belong to the same high-speed low power dissipation dac family and are provided as variant models within a single manufacturer datasheet.

Description

The MS9708/MS9710/MS9714 is a 8-Bit/10-Bit/14-Bit high-speed and low power dissipation DAC.

When sample rate reaches 125MSPS, the MS9708/MS9710/MS9714 can also provide perfect AC and DC characteristics.

The normal operating voltage ranges +2.7V to +5.5V.

Features

  • 8bit Resolution (MS9708), 10bit Resolution (MS9710), 14bit Resolution (MS9714).
  • Update Rate: 125MSPS.
  • Power Dissipation: 175mW @ 5V to 45mW @ 3V.
  • Power-down Mode: 20mW @ 5V.
  • Internal Reference: 1.2V.
  • Edge-Triggered Latch.
  • TSSOP28 Package.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MS9708-Ruimeng.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MS9710
Manufacturer Ruimeng
File Size 821.15 KB
Description High-speed Low Power Dissipation DAC
Datasheet download datasheet MS9710 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MS9000 Single axis analog accelerometer SAFRAN
MS9006 2-Wire Transmitter Microsyst
MS9035C Head Military Specification
MS90451 Lamp Military Standard
MS90538 Inductors Vishay

Other Datasheets by Ruimeng

Part Number Description
MS9714 High-speed Low Power Dissipation DAC
MS9708 High-speed Low Power Dissipation DAC
MS90C032 LVDS Quad CMOS Receiver
MS90C032T LVDS Quad CMOS Receiver
MS90C104 30bits COLOR LVDS Receiver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

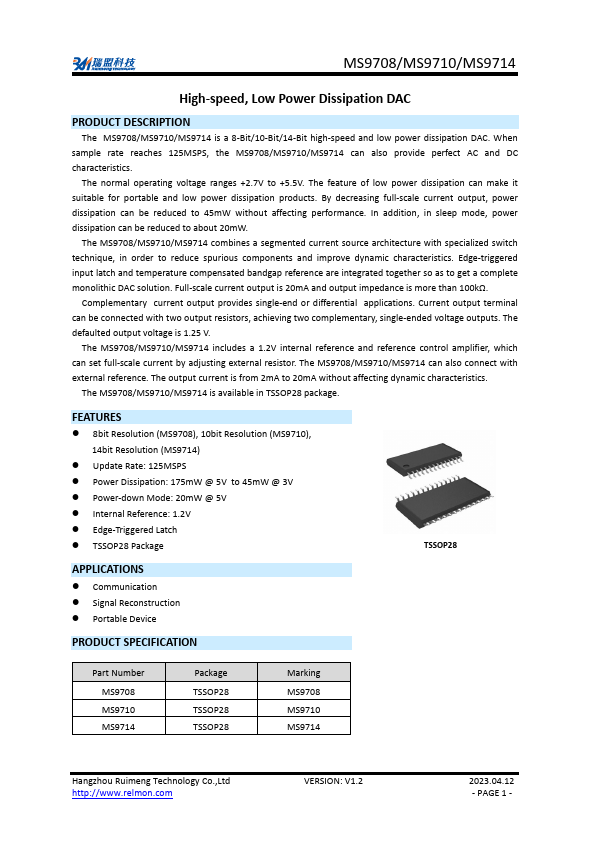

MS9708/MS9710/MS9714 High-speed, Low Power Dissipation DAC PRODUCT DESCRIPTION The MS9708/MS9710/MS9714 is a 8-Bit/10-Bit/14-Bit high-speed and low power dissipation DAC. When sample rate reaches 125MSPS, the MS9708/MS9710/MS9714 can also provide perfect AC and DC characteristics. The normal operating voltage ranges +2.7V to +5.5V. The feature of low power dissipation can make it suitable for portable and low power dissipation products. By decreasing full-scale current output, power dissipation can be reduced to 45mW without affecting performance. In addition, in sleep mode, power dissipation can be reduced to about 20mW.
