LTN170MT02 - LCD

Description

1.

Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2.

Optical Characteristics 3.

Features

  • High contrast ratio.
  • Wide SXGA+ (1680x1050 pixels) resolution.
  • Low power consumption.
  • Fast Response.
  • DE (Data enable) only mode.
  • 3.3V LVDS Interface.
  • On board EDID chip.
  • Pb free product.

📥 Download Datasheet

Datasheet preview – LTN170MT02

📁 Similar Datasheet

  • LTN101AL03-801 - LCD (ETC)
  • LTN111 - LCD (NXP)
  • LTN121X1-L01 - color active matrix TFT (Thin Film Transistor) liquid crystal display (Samsung semiconductor)
  • LTN141P1-L01 - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141x - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141X8-L02 - TFT Display Module (ETC)
  • LTN211 - Liquid Crystal Display (Philips)
Other Datasheets by Samsung

Full PDF Text Transcription

Click to expand full text

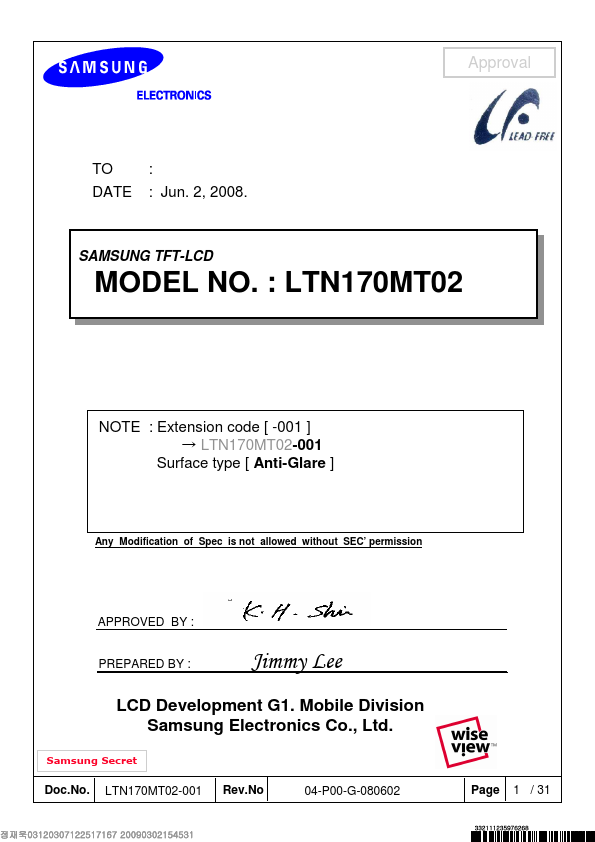

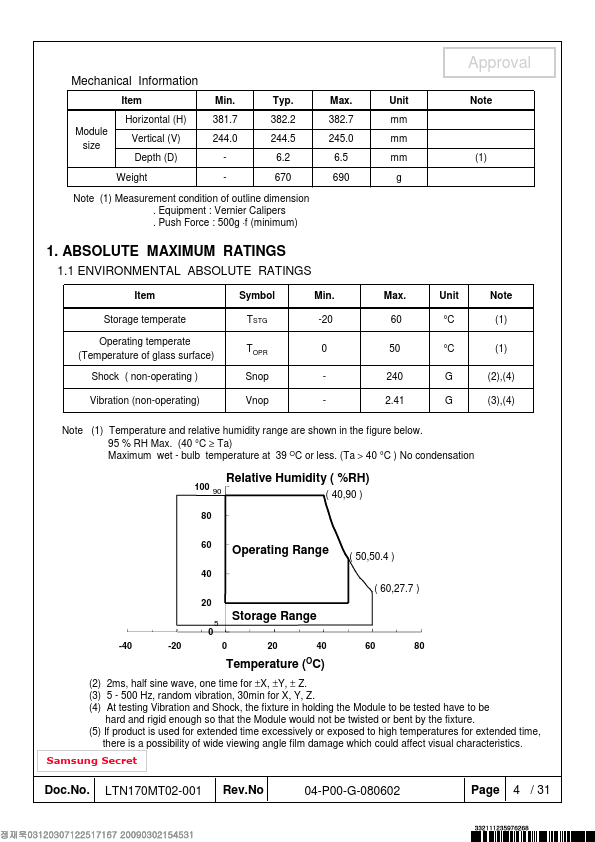

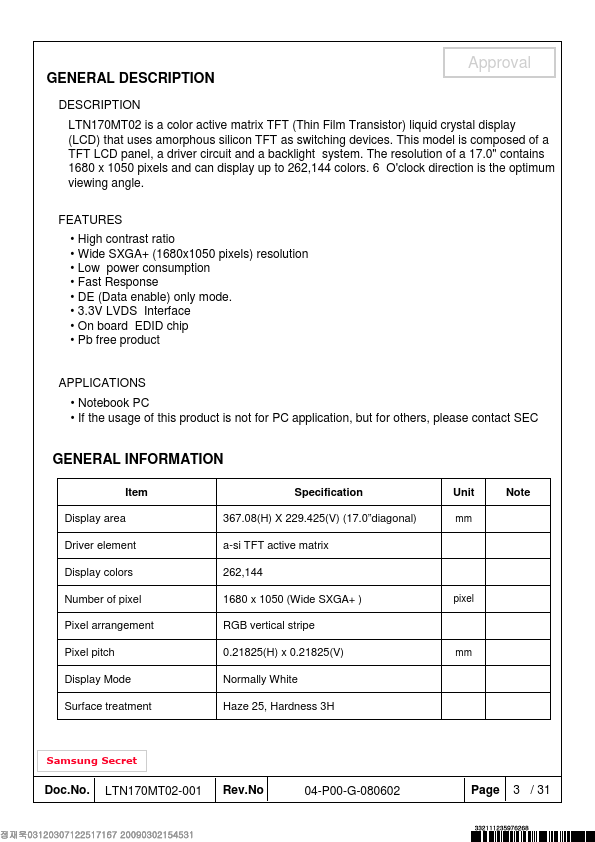

Approval TO DATE : : Jun. 2, 2008. SAMSUNG SAMSUNGTFT-LCD TFT-LCD MODEL MODEL NO. NO. :: LTN170MT02 LTN170MT02 NOTE : Extension code [ -001 ] → LTN170MT02-001 Surface type [ Anti-Glare ] www.DataSheet.net/ Any Modification of Spec is not allowed without SEC’ permission APPROVED BY : PREPARED BY : Jimmy Lee LCD Development G1. Mobile Division Samsung Electronics Co., Ltd. Samsung Secret Doc.No. LTN170MT02-001 Rev.No 04-P00-G-080602 Page 1 / 31 Datasheet pdf - http://www.DataSheet4U.co.kr/ Approval CONTENTS Revision History General Description 1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2. Optical Characteristics 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit 4. Block Diagram 4.1 TFT LCD Module 4.
