2SJ616 - P-Channel Silicon MOSFET

Key Features

  • Low ON-resistance.
  • Ultrahigh-speed switching.
  • 4V drive. 2SJ616 P-Channel Silicon MOSFET 2SJ616 Ultrahigh-Speed Switching.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SJ610 Silicon P-Channel MOSFET Toshiba Semiconductor
2SJ612 P-Channel Silicon MOSFET Sanyo Semicon Device
2SJ619 Silicon P-Channel MOSFET Toshiba Semiconductor
2SJ600 P-Channel Power MOSFET NEC
2SJ600 MOSFET Kexin

Other Datasheets by SANYO (now Panasonic)

Part Number Description
2SJ613 P-Channel Silicon MOSFET
2SJ615 P-Channel Silicon MOSFET
2SJ636 P-Channel Silicon MOSFET
2SJ637 P-Channel Silicon MOSFET
2SJ654 P-Channl Silicon MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

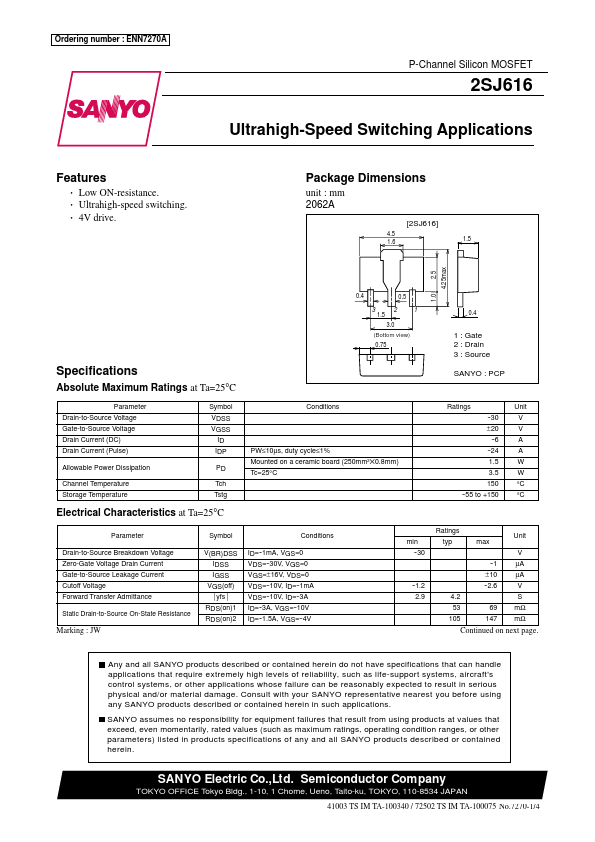

Ordering number : ENN7270A Preliminary Features • Low ON-resistance. • Ultrahigh-speed switching. • 4V drive. 2SJ616 P-Channel Silicon MOSFET 2SJ616 Ultrahigh-Speed Switching Applications Package Dimensions unit : mm 2062A [2SJ616] 4.5 1.6 1.5 1.0 2.5 4.25max Specifications Absolute Maximum Ratings at Ta=25°C 0.4 0.5 3 21 1.5 3.0 (Bottom view) 0.75 0.4 1 : Gate 2 : Drain 3 : Source SANYO : PCP Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (Pulse) Symbol VDSS VGSS ID IDP Allowable Power Dissipation PD Channel Temperature Tch Storage Temperature Tstg Electrical Characteristics at Ta=25°C Conditions PW≤10µs, duty cycle≤1% Mounted on a ceramic board (250mm2!0.
