2SJ637 - P-Channel Silicon MOSFET

SANYO (now Panasonic)

Key Features

Low ON-resistance.
Ultrahigh-speed switching.
4V drive. 2SJ637 P-Channel Silicon MOSFET 2SJ637 DC / DC Converter.

2SJ637 p-channel silicon mosfet by SANYO (now Panasonic) - Datasheet Preview

Datasheet Details

Part number	2SJ637
Manufacturer	SANYO (now Panasonic)
File Size	31.13 KB
Description	P-Channel Silicon MOSFET
Datasheet	2SJ637 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SJ630	P-Channel Silicon MOSFET	Sanyo Semicon Device
2SJ632	P-Channel Silicon MOSFET	Sanyo Semicon Device
2SJ633	P-Channel Silicon MOSFET	Sanyo Semicon Device
2SJ634	P-Channel Silicon MOSFET	Sanyo Semicon Device
2SJ635	P-Channel Silicon MOSFET	Sanyo Semicon Device

Other Datasheets by SANYO (now Panasonic)

Part Number	Description
2SJ636	P-Channel Silicon MOSFET
2SJ613	P-Channel Silicon MOSFET
2SJ615	P-Channel Silicon MOSFET
2SJ616	P-Channel Silicon MOSFET
2SJ654	P-Channl Silicon MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

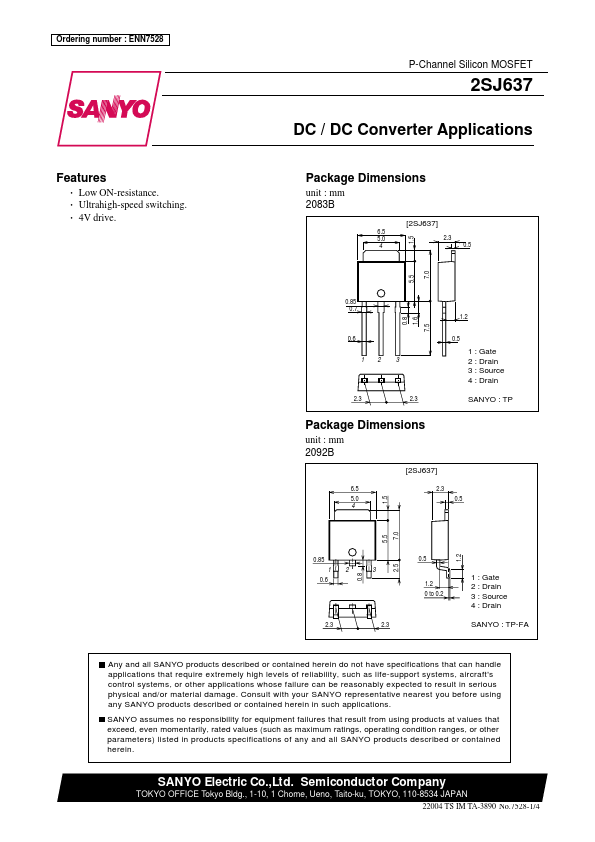

Ordering number : ENN7528 Features • Low ON-resistance. • Ultrahigh-speed switching. • 4V drive. 2SJ637 P-Channel Silicon MOSFET 2SJ637 DC / DC Converter Applications Package Dimensions unit : mm 2083B [2SJ637] 6.5 1.5 5.0 2.3 4 0.5 7.0 5.5 0.85 0.7 1.2 0.8 1.6 7.5 0.6 12 3 2.3 2.3 0.5 1 : Gate 2 : Drain 3 : Source 4 : Drain SANYO : TP Package Dimensions unit : mm 2092B [2SJ637] 6.5 2.3 1.5 5.0 0.5 4 7.0 5.5 1.2 0.85 12 3 0.8 0.6 2.3 2.3 2.5 0.5 1.2 0 to 0.
