SA21309B00DAD is Automotive 1A LDO manufactured by Silergy .
| Part Number | Description |
|---|---|
| SA21309A00DAD | Automotive 1A LDO |
| SA21308A00DED | Automotive 500mA LDO |
| SA21308B | Automotive 500mA LDO |
| SA21340IAAT | 150mA Ultra Low Quiescent LDO |
| SA21340PDAD | 300mA LDO Regulator |

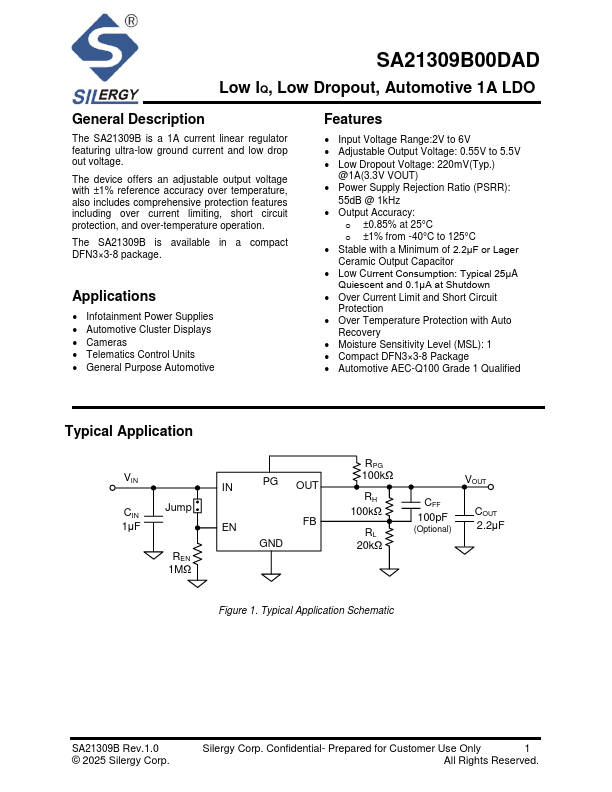

The SA21309B is a 1A current linear regulator featuring ultra-low ground current and low drop out voltage. The device offers an adjustable output voltage with ±1% reference accuracy over temperature, also includes prehensive protection.
