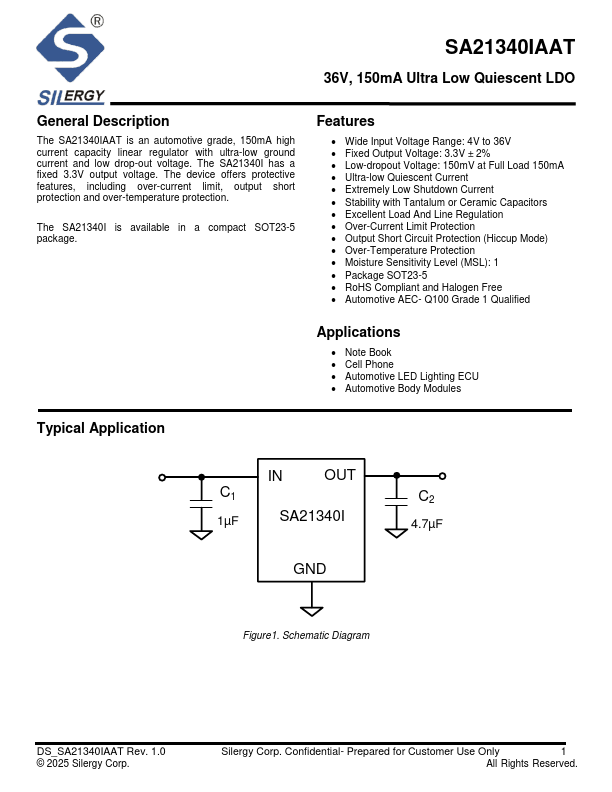

SA21340IAAT Description
The SA21340IAAT is an automotive grade, 150mA high current capacity linear regulator with ultra-low ground current and low drop-out voltage. The SA21340I has a fixed 3.3V output voltage. The device offers protective.
SA21340IAAT Key Features
- Wide Input Voltage Range: 4V to 36V
- Fixed Output Voltage: 3.3V ±2%
- Low-dropout Voltage: 150mV at Full Load 150mA
- Ultra-low Quiescent Current
- Extremely Low Shutdown Current
- Stability with Tantalum or Ceramic Capacitors
- Excellent Load And Line Regulation
- Over-Current Limit Protection
- Output Short Circuit Protection (Hiccup Mode)
- Over-Temperature Protection
