SA21340PFCP
Overview

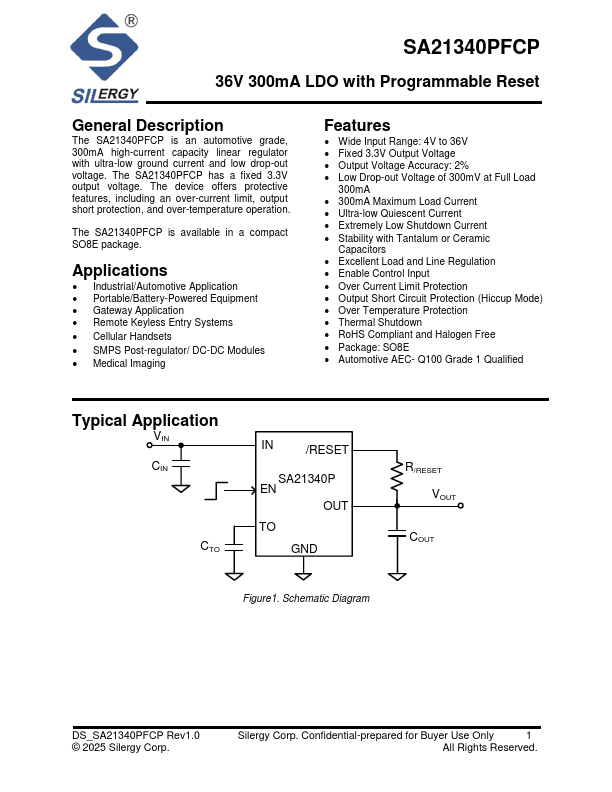

The SA21340PFCP is an automotive grade, 300mA high-current capacity linear regulator with ultra-low ground current and low drop-out voltage. The SA21340PFCP has a fixed 3.3V output voltage.
| Part | SA21340PFCP |
|---|---|
| Description | 36V 300mA LDO |
| Category | LDO Regulator |
| Manufacturer | Silergy |
| Size | 726.76 KB |
