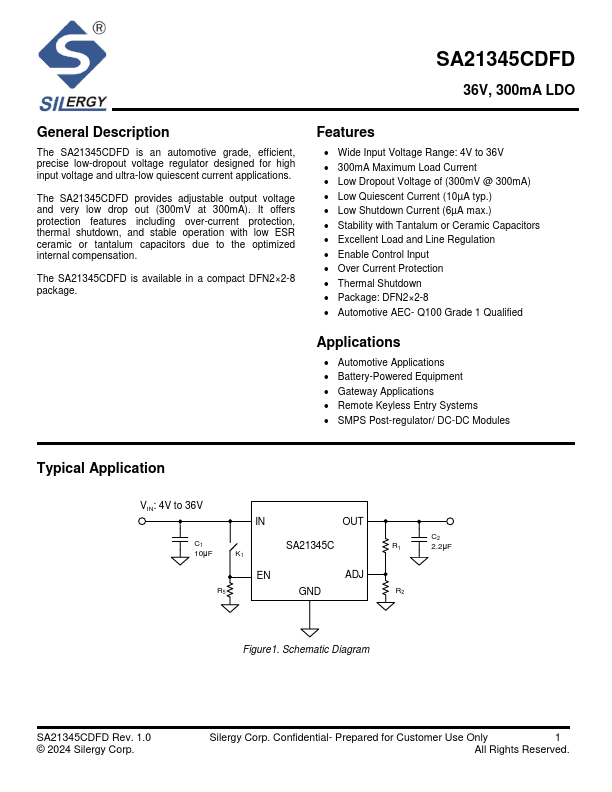

SA21345CDFD Description
The SA21345CDFD is an automotive grade, efficient, precise low-dropout voltage regulator designed for high input voltage and ultra-low quiescent current applications. The SA21345CDFD provides adjustable output voltage and very low drop out (300mV at 300mA).
SA21345CDFD Key Features
- Wide Input Voltage Range: 4V to 36V
- 300mA Maximum Load Current
- Low Dropout Voltage of (300mV @ 300mA)
- Low Quiescent Current (10µA typ.)
- Low Shutdown Current (6µA max.)
- Stability with Tantalum or Ceramic Capacitors
- Excellent Load and Line Regulation
- Enable Control Input
- Over Current Protection
- Thermal Shutdown
