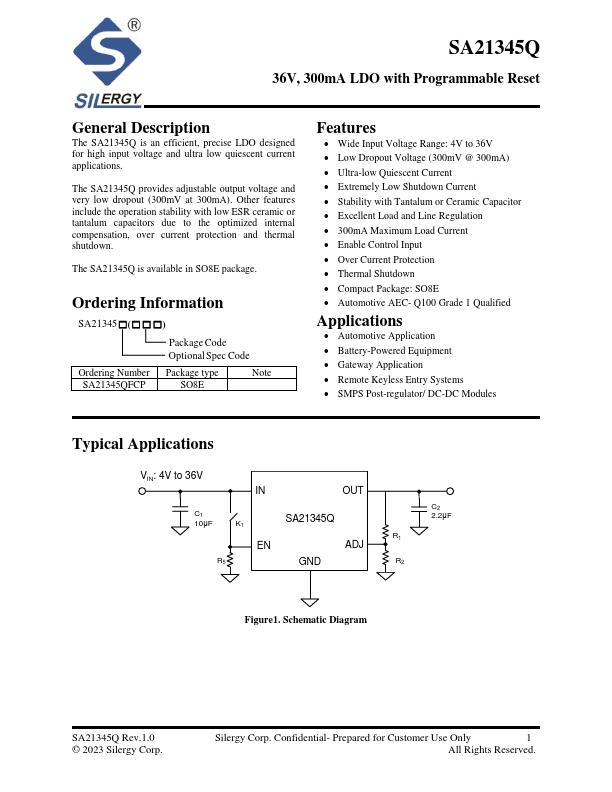

SA21345Q Description
The SA21345Q is an efficient, precise LDO designed for high input voltage and ultra low quiescent current applications. The SA21345Q provides adjustable output voltage and very low dropout (300mV at 300mA).
SA21345Q Key Features
- Wide Input Voltage Range: 4V to 36V
- Low Dropout Voltage (300mV @ 300mA)
- Ultra-low Quiescent Current
- Extremely Low Shutdown Current
- Stability with Tantalum or Ceramic Capacitor
- Excellent Load and Line Regulation
- 300mA Maximum Load Current
- Enable Control Input
- Over Current Protection
- Thermal Shutdown
