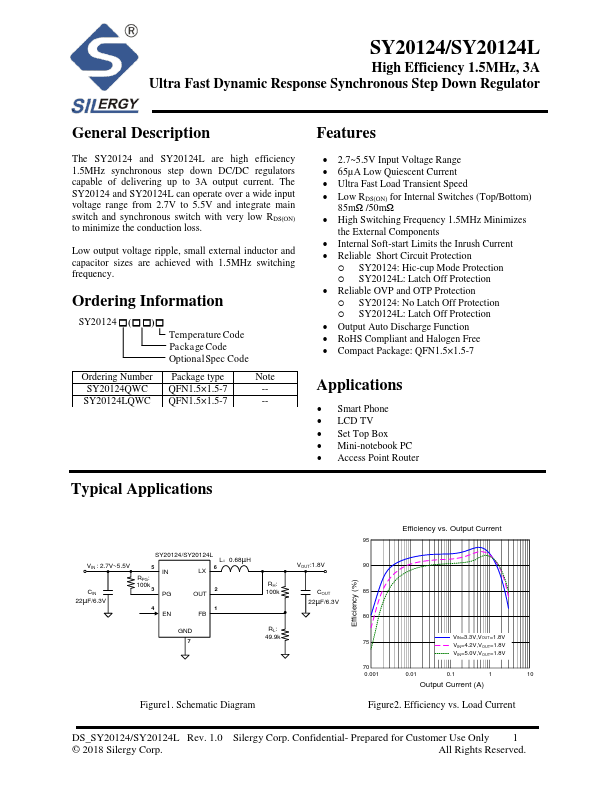

Description The SY20124 and SY20124L are high efficiency 1.5MHz synchronous step down DC/DC regulators capable of delivering up to 3A output current. The SY20124 and SY20124L can operate over a wide input voltage range from 2.7V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. Low output voltage ripple, small external inductor and capacitor sizes are achieved with 1.5MHz switching frequency. Ordering Information - (- - )- Tempera ture Code Pa cka ge Code Optional Spec Code Ordering Number Package type Note SY20124QWC QFN1.5×1.5-7 -- SY20124LQWC QFN1.5×1.5-7 -- Features - 2.7~5.5V Input Voltage Range - 65µA Low Quiescent Current - Ultra Fast Load Transient Speed - Low RDS(ON) for Internal Switches (Top/Bottom) 85mΩ /50mΩ - High Switching Frequency 1.5MHz Minimizes the External ponents - Internal Soft-start Limits the Inrush Current - Reliable Short Circuit Protection  SY20124: Hic-cup Mode Protection  SY20124L: Latch Off Protection - Reliable OVP and OTP Protection  SY20124: No Latch Off Protection  SY20124L: Latch Off Protection - Output Auto Discharge Function - Ro HS pliant and Halogen Free - pact Package: QFN1.5×1.5-7 Applications - Smart Phone - LCD TV - Set Top Box - Mini-notebook PC - Access Point Router Typical Applications VIN : 2.7V~5.5V 22µF/6.3V SY20124/SY20124L L：0.68µH 5 IN RPG: 6...
