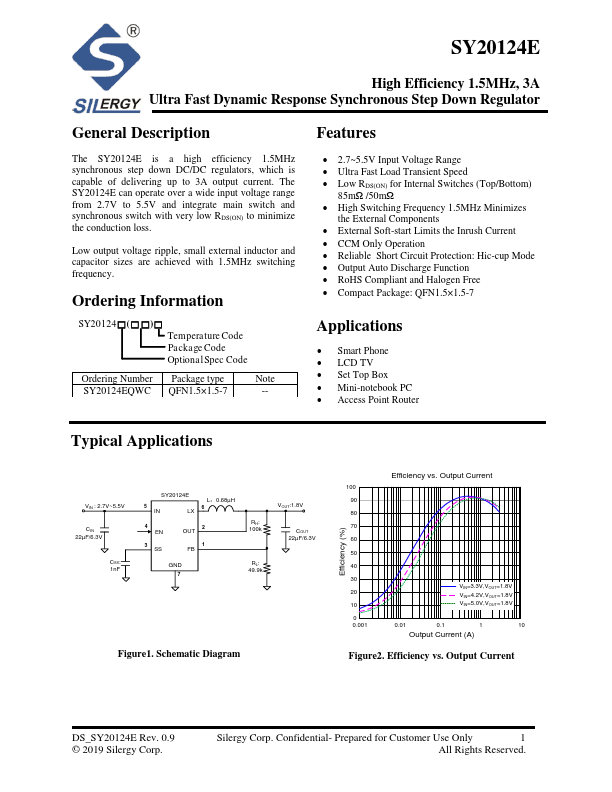

SY20124E
SY20124E is 3A Ultra Fast Dynamic Response Synchronous Step Down Regulator manufactured by Silergy.
Description
Features
The SY20124E is a high efficiency 1.5MHz synchronous step down DC/DC regulators, which is capable of delivering up to 3A output current. The SY20124E can operate over a wide input voltage range from 2.7V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
Low output voltage ripple, small external inductor and capacitor sizes are achieved with 1.5MHz switching frequency.
Ordering Information
SY20124- (-
- )- Tempera ture Code Pa cka ge Code Optional Spec Code
Ordering Number Package type
Note
SY20124EQWC QFN1.5×1.5-7
--
- 2.7~5.5V Input Voltage Range
- Ultra Fast Load Transient Speed
- Low RDS(ON) for Internal Switches (Top/Bottom)
85mΩ /50mΩ
- High Switching Frequency 1.5MHz Minimizes the External ponents
- External Soft-start Limits the Inrush Current
- CCM Only Operation
- Reliable Short Circuit Protection: Hic-cup Mode
- Output Auto Discharge Function
- Ro HS pliant and Halogen Free
- pact Package: QFN1.5×1.5-7
Applications
- Smart Phone
- LCD TV
- Set Top Box
- Mini-notebook PC
- Access Point Router
Typical Applications
VIN : 2.7V~5.5V
CIN 22µF/6.3V
CSS: 1n F
L：0.68µH
5 IN
6 LX
4 EN
3 SS
2 OUT
1 FB
GND...
