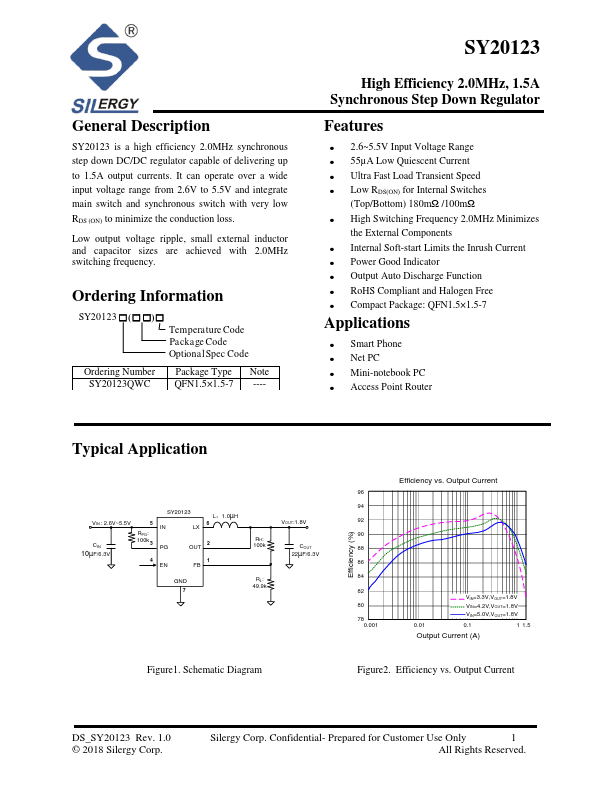

SY20123
SY20123 is 1.5A Synchronous Step Down Regulator manufactured by Silergy.
Description
SY20123 is a high efficiency 2.0MHz synchronous step down DC/DC regulator capable of delivering up to 1.5A output currents. It can operate over a wide input voltage range from 2.6V to 5.5V and integrate main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss.
Low output voltage ripple, small external inductor and capacitor sizes are achieved with 2.0MHz switching frequency.
Ordering Information
- (-
- )- Tempera ture Code Pa cka ge Code Optional Spec Code
Ordering Number Package Type Note SY20123QWC QFN1.5×1.5-7 ----
High Efficiency 2.0MHz, 1.5A Synchronous Step Down Regulator
Features
- 2.6~5.5V Input Voltage Range
- 55µA Low Quiescent Current
- Ultra Fast Load Transient Speed
- Low RDS(ON) for Internal Switches
(Top/Bottom) 180mΩ /100mΩ
- High Switching Frequency 2.0MHz Minimizes the External ponents
- Internal Soft-start Limits the Inrush Current
- Power Good Indicator
- Output Auto Discharge Function
- Ro HS pliant and Halogen Free
- pact Package: QFN1.5×1.5-7
Applications
- Smart Phone
- Net PC
- Mini-notebook PC
- Access Point Router
Typical Application
VIN : 2.6V~5.5V
10µF/6.3V
5 RPG: 100k
L：1.0µH
GND 7
RH: 100k
RL: 49.9k
VOUT:1.8V
COUT...
