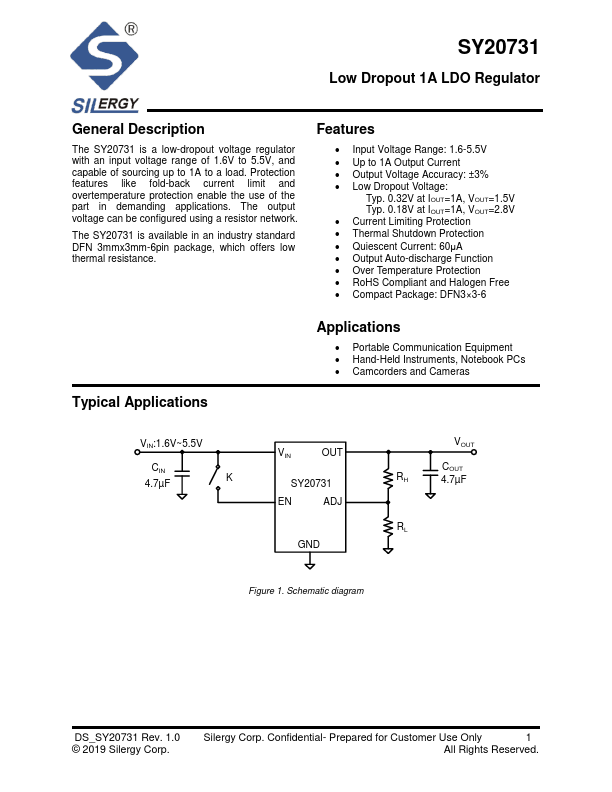

SY20731
Description
The SY20731 is a low-dropout voltage regulator with an input voltage range of 1.6V to 5.5V, and capable of sourcing up to 1A to a load. Protection features like fold-back current limit and overtemperature protection enable the use of the part in demanding applications. The output voltage can be configured using a resistor network.
The SY20731 is available in an industry standard DFN 3mmx3mm-6pin package, which offers low thermal resistance.
Features
- Input Voltage Range: 1.6-5.5V
- Up to 1A Output Current
- Output Voltage Accuracy: ±3%
- Low Dropout Voltage:
Typ. 0.32V at IOUT=1A, VOUT=1.5V Typ. 0.18V at IOUT=1A, VOUT=2.8V
- Current Limiting Protection
- Thermal Shutdown Protection
- Quiescent Current: 60μA
- Output Auto-discharge Function
- Over Temperature Protection
- Ro HS pliant and Halogen Free
- pact Package: DFN3×3-6
Typical Applications
Applications
- Portable munication Equipment
- Hand-Held Instruments, Notebook PCs
- Camcorders and Cameras
VIN:1.6V~5.5V...
