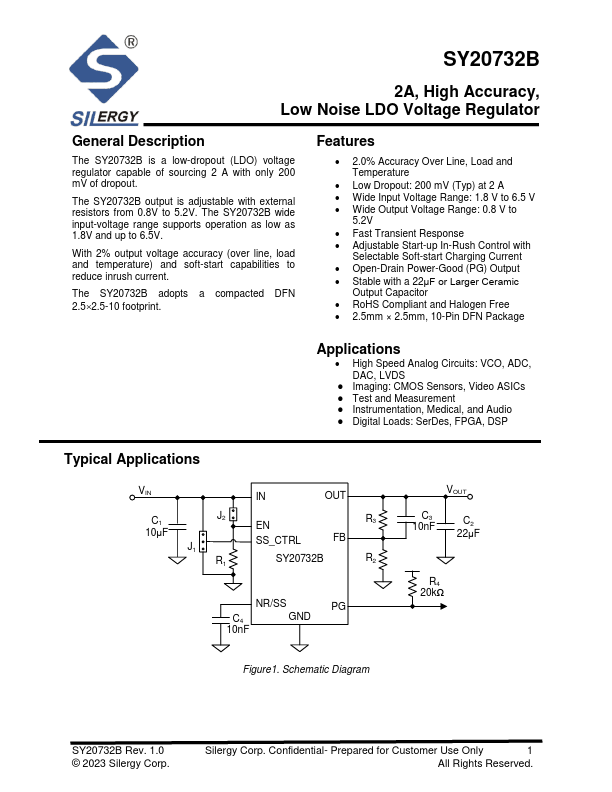

SY20732B Datasheet | Silergy

Description The SY20732B is a low-dropout (LDO) voltage regulator capable of sourcing 2 A with only 200 m V of dropout. The SY20732B output is adjustable with external resistors from 0.8V to 5.2V. The SY20732B wide input-voltage range supports operation as low as 1.8V and up to 6.5V. With 2% output voltage accuracy (over line, load and temperature) and soft-start capabilities to reduce inrush current. The SY20732B adopts a pacted DFN 2.52.5-10 footprint. Features - 2.0% Accuracy Over Line, Load and Temperature - Low Dropout: 200 m V (Typ) at 2 A - Wide Input Voltage Range: 1.8 V to 6.5 V - Wide Output Voltage Range: 0.8 V to 5.2V - Fast Transient Response - Adjustable Start-up In-Rush Control with Selectable Soft-start Charging Current - Open-Drain Power-Good (PG) Output - Stable with a 22μF or Larger Ceramic Output Capacitor - Ro HS pliant and Halogen Free - 2.5mm × 2.5mm, 10-Pin DFN Package Applications - High Speed Analog Circuits: VCO, ADC, DAC, LVDS - Imaging: CMOS Sensors, Video...
