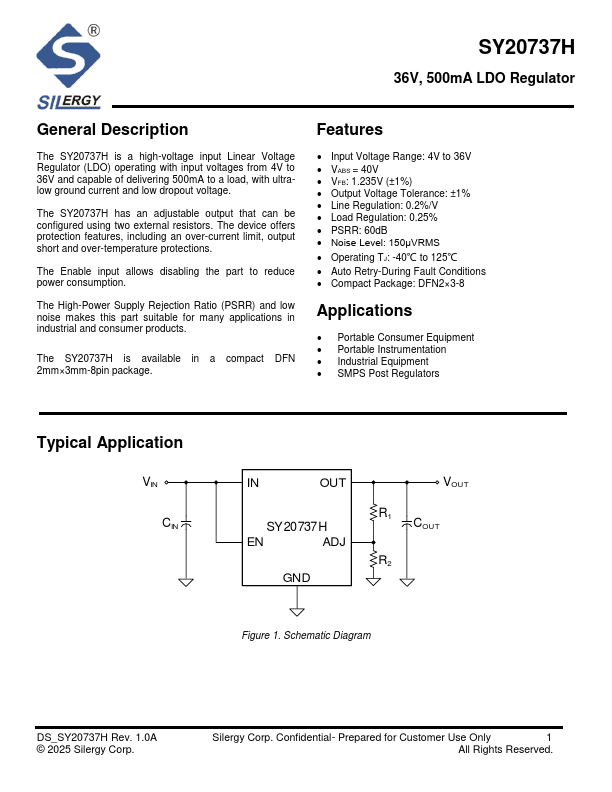

SY20737H
Description
The SY20737H is a high-voltage input Linear Voltage Regulator (LDO) operating with input voltages from 4V to 36V and capable of delivering 500m A to a load, with ultralow ground current and low dropout voltage.
The SY20737H has an adjustable output that can be configured using two external resistors. The device offers protection features
, including an over-current limit, output short and over-temperature protections.
The Enable input allows disabling the part to reduce power consumption.
The High-Power Supply Rejection Ratio (PSRR) and low noise makes this part suitable for many applications in industrial and consumer products.
The SY20737H is available in a pact DFN 2mm×3mm-8pin package.
Features
- Input Voltage Range: 4V to 36V
- VABS = 40V
- VFB: 1.235V (±1%)
- Output Voltage Tolerance: ±1%
- Line Regulation: 0.2%/V
- Load Regulation: 0.25%
- PSRR: 60d B
- Noise Level: 150μVRMS
- Operating TJ: -40℃ to 125℃
- Auto Retry-During Fault Conditions
- pact Package:...
