SY20733B
Description
The SY20733B is a low-voltage, low-dropout voltage regulator capable of sourcing 500m A with a built-in negative metal-oxide-semiconductor (NMOS). A separate bias rail is provided to enable an input voltage range of 0.8V to 5.5V. The output voltage can be configured using a resistor divider and provides a voltage accuracy of ±1%.
The SY20733B is available in a pact DFN1.2mm×1.2mm-6 pin package.
Features
- Input Voltage Range: 0.8V-5.5V
- Bias Voltage Range: 2.4V-5.5V
- Output Voltage Accuracy: ±1%
- Bias Input Quiescent Current: 110µA (typ.)
- Bias Shutdown current: 0.1µA (typ.)
- Up to 500m A Output Current
- Current Limit Protection
- Over Temperature Shutdown
- Output Auto-Discharge Resistor: 130Ω
- Ro HS pliant and Halogen Free
- pact Package: DFN1.2×1.2-6
Applications
- Battery- Powered Equipment
- Smartphones, Tablets
- Cameras, DVRs, STB and Camcorders

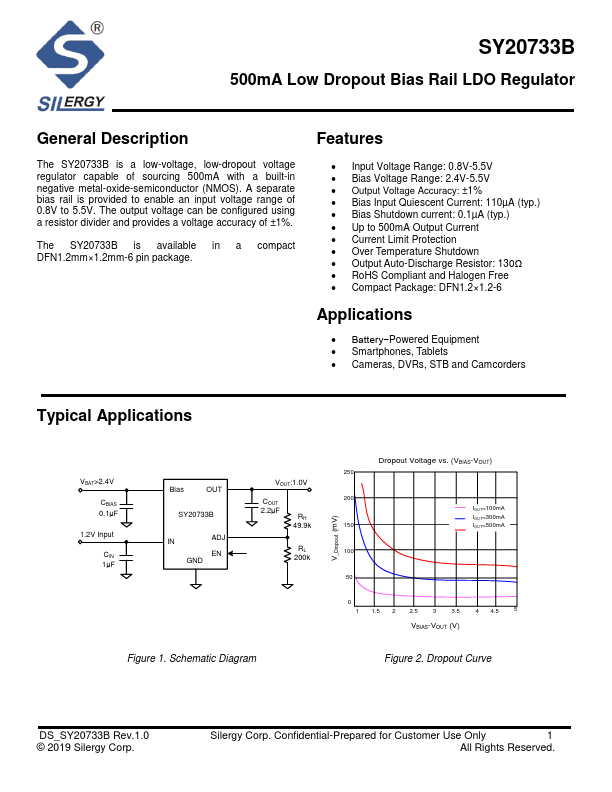

Typical Applications
VBAT>2.4V
CBIAS 0.1μF
1.2V Input
CIN 1μF
Bias
EN GND
VOUT:1.0V
COUT...
