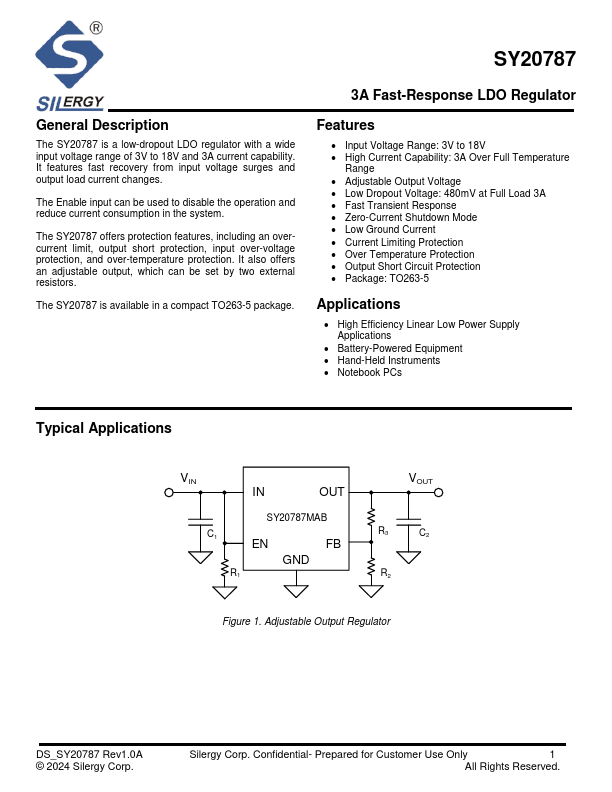

SY20787 Description
The SY20787 is a low-dropout LDO regulator with a wide input voltage range of 3V to 18V and 3A current capability.
SY20787 Key Features
- Input Voltage Range: 3V to 18V
- High Current Capability: 3A Over Full Temperature
- Adjustable Output Voltage
- Low Dropout Voltage: 480mV at Full Load 3A
- Fast Transient Response
- Zero-Current Shutdown Mode
- Low Ground Current
- Current Limiting Protection
- Over Temperature Protection
- Output Short Circuit Protection
